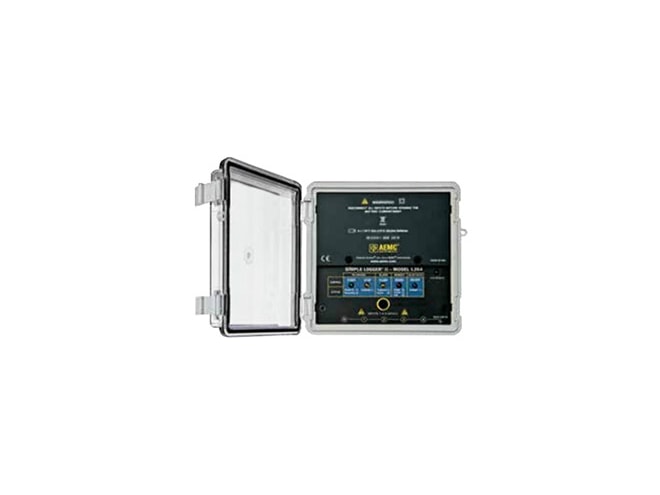

AEMC L264 Simple Logger II

Retired products cannot be ordered

Please call us for a recommended replacement

View Company Reviews

Part Number

2126.23

Manufactured

By AEMC

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs (2 Files)

Features

TRMS voltage recording up to 600VAC/DC
64 samples per cycle
Programmable storage rates from 8 per second to 1 every day
Four user selectable storage modes
Stores up to 1,000,000 measurements in non-volatile memory
Up to 180 days of operation from standard alkaline batteries
Lightweight, compact, fits anywhere
Six LED indicators quickly and clearly display logger status
Includes DataView® software
Wireless Bluetooth data communication
Includes set of 5 color-coded (4-red/1-black) 5 ft leads with color-coded alligator clips
600V CAT IV; 1000V CAT III

The AEMC L264 Simple Logger® II is a 4-channel AC/DC voltage recording device powered by alkaline batteries. Voltage inputs are directly measured up to 600VAC or DC. Harmonic measurements are calculated from 64 samples taken on each AC cycle measured and are only available in real-time from the Simple Logger® II Control Panel in the DataView® software.

The Simple Logger® II, Model L264, stores TRMS measurements at user programmable rates from eight times per second to one per day. TRMS calculations are performed on a single line cycle. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.

Bluetooth communication provides for the transfer of data from the instrument's internal memory to the computer for monitoring, storing and/or analysis.

Applications include:
