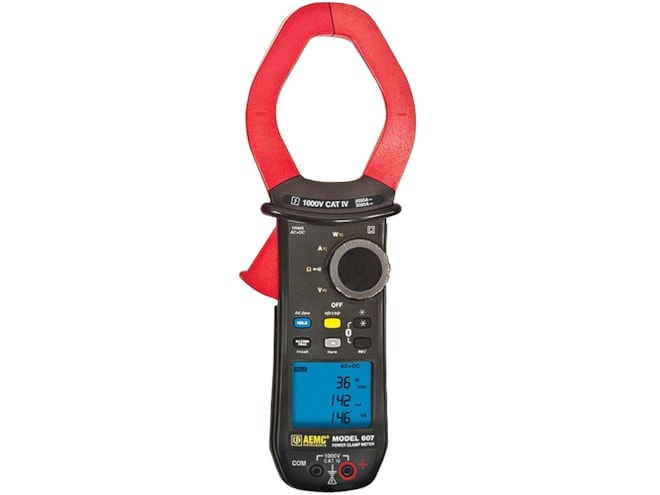

AEMC Model 607 TRMS Power Clamp On Meter

Name: AEMC Model 607 TRMS Power Clamp On Meter
Price: 660.25 USD
Availability: BackOrder

1000V CAT IV Rated, Measures up to 1000VAC (1400V peak), measures up to 2000AAC and 3000ADC, available with Android Mobile App.

$695.00 $660.25 Found a better price? Let us match.

View Company Reviews

Part Number

2139.61

Manufactured

By AEMC

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-5 business days

Product Manual Product Specs (2 Files)

Features

IP54 Rated
10,000-count blue electroluminescent backlit display
Measures up to 1000VAC (1400V peak)
1000VDC and AC+DC with resolution to 10mV
Measures up to 2000AAC and 3000ADC
Measures W, VA, var and PF for 1Φ & 3Φ balanced systems
Measures single and three-phase power
Measures frequency to 20kHz with 0.1Hz resolution
Auto selects AC or DC measurement voltage
UL 94 flame retardant self-extinguishing
True InRush™ current measurement with 1mS capture
Records up to 1000 measurements
Wireless Bluetooth communications
Jaw opening up to 2.36"
Leads are constructed with a flexible silicone material

The AEMC Model 607 TRMS Power Clamp On Meter provides a new standard for safety and measurement capability not available in any other clamp meter sold today. Safety Rated at 1000V CAT IV, it is safe to operate in all electrical environments. It is rugged enough for the most demanding work environments and will withstand both dust and water spray with its IP54 rating. It is ergonomically designed and easily used by one hand, including function selection and button pushing even with a glove on. In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and continuity, the Model 607 offers several unequaled functions including: AC, DC and AC+DC volts, amps and power, True InRush™, Power measurements, Harmonic analysis, Data logging and more.

Application include:
