  1. Clamp Meters

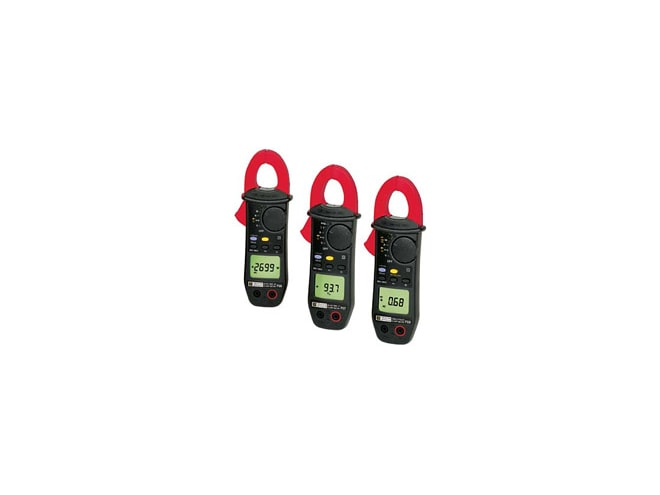

AEMC F05, F07, & F09 TRMS Clamp-On Meters

True RMS measurement through fast sampling featuring selectable V-Live™ function.

AEMC F05, F07, & F09 TRMS Clamp-On Meters
AEMC F05, F07, & F09 TRMS Clamp-On Meters
Retired products cannot be ordered

View Company Reviewsby Trustpilot
Manufactured
  • By AEMC
Includes
  • FREE Ground Shipping on orders of $1,000 or more
  • FREE Lifetime Tech Support
Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Trustpilot

Overview

Features

  • 4kHz Bandwidth
  • 3.5 Crest Factor @ 600Arms and 900Vrms
  • Peak function captures 500μs signals
  • Min/Max for automatic capture of extreme values on 100ms samples
  • Continuity at programmable buzzer threshold from 1 to 40Ω
  • Battery life displays directly in hours
  • Automatically detects AC or DC and is auto-ranging
  • Automatic DC current zeroing
  • Backlit digital display
  • Includes soft carrying case and test leads
  • EN 61010-1, EN 61010-2-032, 600V Cat. III

Description

The AEMC F05, F07, & F09 TRMS clamp-on meters are a high performance line built into a rugged compact sized case, with exceptional ergonomic design and extraordinary measurement possibilities. They are designed to offer professional measurement possibilities rarely seen in a clamp-on meter. Integrating a fast microprocessor sampling at a high rate, they are completely automatic and perform TRMS measurements on the most distorted waveforms.

All models automatically detect AC or DC in Voltage and Current and include a V-Live™ function to warn of the use of live circuits or elevated voltages. They also auto-range for the best resolution on a backlit 4000-count display and have auto-off to save the battery.

The F07 and F09 models measure TRMS voltage and current and can incorporate the DC component of the signal for the truest RMS. The F07 model includes an AC/DC adaptor input enabling the use of accessories and measures temperature up to 1832°F via standard K thermocouple.

The F05 and F09 models measure phase rotation using only two leads for power factor and power.

AEMC F05, F07, & F09 TRMS Clamp-On Meters Applications

  • Electrical maintenance
  • Electrical power distribution
  • Safety lighting system maintenance
  • Automotive test troubleshooting
  • Industrial maintenance
  • HVAC
  • Phase identification
  • Measure in-rush currents from 1 to 10 cycles and frequency

AEMC F05, F07, & F09 TRMS Clamp-On Meters Include

  • Test leads
  • Soft carrying case
  • User manual

Documents

Documents

  • AEMC F05, F07, & F09 TRMS Clamp-On Meters Datasheet PDF (358 KB)
  • AEMC F05 Clamp-On Meter Manual PDF (891 KB)
  • AEMC F07 Clamp-On Meter Manual PDF (851 KB)
  • AEMC F09 Clamp-On Meter Manual PDF (1015 KB)
  • All possible part numbers

Accessories

AEMC ALS-1 Line Splitter
AEMC ALS-1 Line Splitter

Avoids splitting lines, increases sensitivity of clamp-on current probes and clamp-on meters.

$18.00
