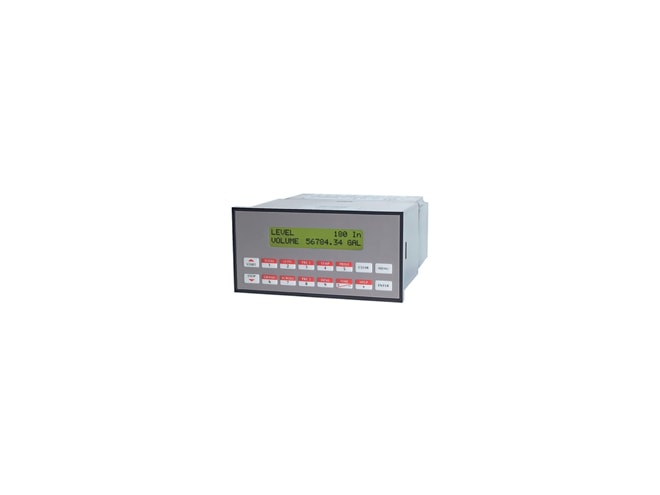

KEP LEVELtrol II Level Indicator
Level and Tank Volume/Mass Indicator, Level Control, Tank Volume, Corrected Volume and Mass Calculations
Need Help? Call a Flow Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Batching by Level
- Two Line LCD or VFD Display
- Isolated Outputs
- RS-232 Port
- RS-485 Windows™ Setup Software Option
- DIN Enclosure with Two Piece Connectors
- DDE Server & HMI Software Options
The KEP LEVELtrol II level indicator satisfies the instrument requirements for a variety of level sensor types in liquid applications. Multiple tank geometries, fluid equations and instrument functions are available in a single unit with many advanced features. The alphanumeric display shows measured and calculated parameters in easy to understand format. Single key direct access to measurements and display scrolling are supported
The versatility of the LEVELtrol II permits a wide measure of versatility with in the instrument package. The various hardware inputs and outputs can be "soft" assigned to meet a variety of common application needs. The user "soft selects" the usage of each input/output while configuring the instrument.
The isolated analog output can be chosen to follow level, tank volume, corrected tank volume, tank mass, temperature, or density by means of a menu selection. Most hardware features are assignable by this method.
The user can assign the standard RS-232 Serial Port for data logging, transaction printing, or for connection to a modem for remote meter reading.
