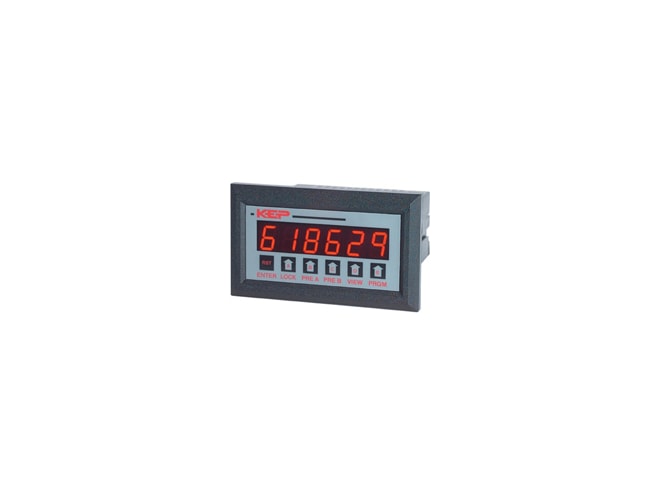

KEP NAMUR R/T Ratemeter / Totalizer
CSA Listed, Separate Scaling Factors For A & B Inputs
Need Help? Call a Flow Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- 10 kHz Max. input
- Modbus RTU RS422/RS485/RS232 option
- NEMA 4X / IP65 Front Panel
- Add/Subtract Simultaneous Inputs
- Quadrature and U/D Direction Control Inputs
- 4-20mA or 0-20mA Output option
The KEP NAMUR R/T Ratemeter / Totalizer is a 6 digit unit with two level, 5 digit preset alarm control of total or rate. Inputs A & B have separate scaling K-factors. The totalizer can be programmed for "A" subtract "B", "A" add "B" or A & B as separate totalizers, with display and control of the "net" total and rate of "A". The NAMUR R/T is also available in 2 other versions. NC2: a two preset totalizer with scaling, NR2: a high/low alarm ratemeter with scaling. If only one input is required, the unit will display the total and rate from that one channel. The NAMUR R/T can accept up to 10,000 pulses per second. It has a 5 digit floating decimal scale factor allowing total readout in true engineering units and rate per second, minute or hour.
Input "A" simultaneously drives a ratemeter which can be programmed to display the basic frequency (rate per second) or factored to show rate per minute or rate per hour. Simply push the "VIEW" button to see either total or rate without losing a count. Two separate 5 A relay contacts can be set to operate at either rate or total presets in a latch or autorecycle mode with output timing from 0.1 to 99.9 seconds. Two control outputs can be assigned to either the totalizer or ratemeter and can automatically recycle at the preset total or stay latched until reset.
Several units can communicate to a host computer on a single RS232 or RS422 loop. Each unit can be assigned it's own I.D. number. When two inputs are received (A & B), the unit can either add or subtract the two inputs or display the two inputs as separate totalizers.
Application: Any rate, total or blending application where 2 preset alarms and scaling are required for a NAMUR sensor.
