  1. Panel Meters

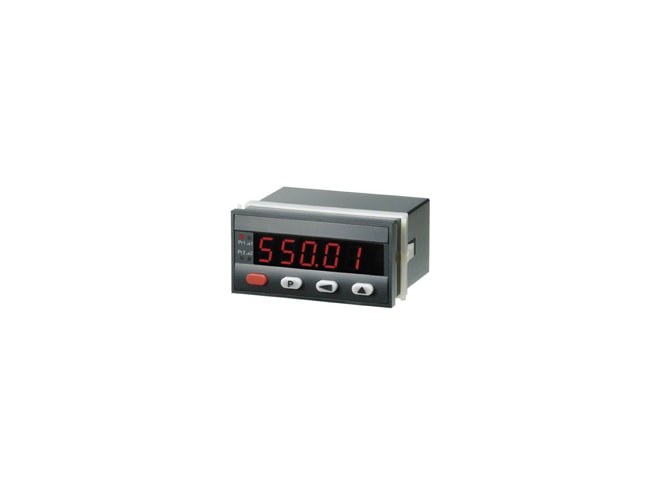

KEP TP-554 Series Temperature / Process Monitor

Programmable operating curve for standard signals, thermocouples and resistance thermometers.

KEP TP-554 Series Temperature / Process Monitor
KEP TP-554 Temperature/Process Monitor
Retired products cannot be ordered

View Company Reviewsby Trustpilot
Manufactured
  • By KEP
Includes
  • FREE Ground Shipping on orders of $1,000 or more
  • FREE Lifetime Tech Support
Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Trustpilot

Overview

Features

  • LED display, height 14mm
  • DIN housing, 96 x 48 mm
  • Programmable operating curve, even nonlinear
  • Two relay outputs with two preset limit values

Description

KEP TP-554 Series Temperature / Process Monitor features:
  • Resolution 14 bits
  • Menu-driven programming, and operation with 4 keys
  • Electrical connections by means of plug-in screw terminals
  • Voltage supply: 10-30 VDC or 90-260 VAC
  • IP 65/NEMA4 (front)
  • Auxiliary power supply output for transducer or sensor 10..30 VDC: 10 VDC ± 2%, 30mA 90..260 VAC: 24 VDC ± 15%, 50mA and 10 VDC ± 2%, 30mA
  • Hum eliminator (50/60 Hz user selectable)
  • Serial interface allows reading of the measured values and set-up programming.

Documents

Documents

  • KEP TP-554 Temperature/Process Monitor Datasheet PDF (543 KB)
  • All possible part numbers

Accessories

KEP XHV Explosion Proof Housing
KEP XHV Explosion Proof Housing

Explosion proof housing for SUPERtrol flow computers. Available for 1/8 DIN KEP meters.

Starting at $1,694.00
