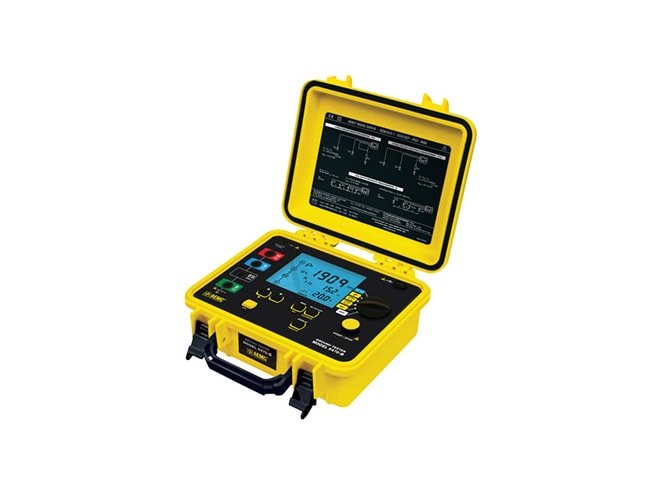

AEMC Model 6470-B Ground Resistance Tester
Starting at $2,870.00
Starting at $2,439.50

Some models in stock. View available part numbers.

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • 2- and 4-Wire bond resistance/continuity measurement (DC resistance) with automatic polarity reversal
  • 3-Pole (3-Point) Fall-of-Potential measurement with manual or automatic frequency selection
  • 4-Pole (4-Point) Fall-of-Potential measurement for very low resistance measurements with manual and automatic frequency selection and automatice lead compensation
  • 4-Pole (4-Point) soil resistivity measurement with automatic calculation of Rho and user selection of the Wenner or Schlumberger test method
  • 3-Pole (3-Point) earth coupling measurement
  • Manual and automatic frequency scan from 40 to 513 Hz for optimum test accuracy in electrically noisy environments
  • Selectable test voltage of 16 or 32 V up to 250 mA of test current
  • Auto-off power management
  • Automatic recognition of all electrode connections and their resistance value
  • Stores up to 512 complete test results in internal memory
  • Optically isolated USB communication

The AEMC model 6470-B ground resistance tester is a portable measurement instrument designed to measure ground resistance, soil resistivity (two methods: Wenner and Schlumberger), bonding resistance (DC resistance 2-wire and 4-wire Kelvin sensing) and earth coupling resistance. This direct reading tester measures from 0.01 to 99.99 kΩ and is auto-ranging, automatically seeking out the optimum measurement range and test current.

The AEMC model 6470-B is easy-to-use. Simply connect the leads, select the test mode, press 'Start' and read the results. Up to 512 test results can be stored in internal memory for later recall to the display or downloaded to a PC via the DataView software. The large LCD is easy-to-read and indicates ground electrode resistance, test voltage, current and frequency as well as individual electrode resistance, battery status and more.

The AEMC digital ground resistance tester model 6470-B is CAT IV rated to 50 V and is overvoltage protected to more than 250 V AC against accidental connection to live circuits. The voltage is also displayed on screen. In the event of a system fault, the Model 6470-B can withstand 250 V AC.

The AEMC Digital Ground Resistance Tester Model 6470-B ships complete with:

  • NiMH battery pack
  • Optically isolated USB cable
  • DataView software
  • External battery charger
  • AC power cord
  • User manual

The AEMC Digital Ground Resistance Tester Model 6470-B is also offered in three different kit packages.

The AEMC Digital Ground Resistance Tester Model 6470-B 300 ft Kit ships complete with:

  • Model 6470-B meter and accessories listed above
  • (2) 300 ft. color-coded leads on spools(red/blue)
  • (2) 100 ft. color-coded leads (green/black)
  • (4) T-shaped aux. ground electrodes
  • (5) spaded lugs
  • (1) 100 ft. tape measure
  • Carrying bag

The AEMC Digital Ground Resistance Tester Model 6470-B 500 ft Kit ships complete with:

  • Model 6470-B meter and accessories listed above
  • (2) 500 ft. color-coded leads on spools(red/blue)
  • (2) 100 ft. color-coded leads (green/black)
  • (1) 30 ft. lead (green)
  • (4) T-shaped aux. ground electrodes
  • (5) spaded lugs
  • (1) 100 ft. tape measure
  • Carrying bag
AEMC Digital Ground Resistance Tester Model 6470-B Specifications
3-Point Measurement
Range (Auto-Ranging) 0.01 Ω to 99.99 kΩ
Resolution 0.01 Ω to 100 Ω
Test Voltage Nominal 16 or 32 V RMS user selectable
Resistance measurement frequency 41 to 513 Hz user selectable or automatic selection
Test current Up to 250 mA
Accuracy ±2% of reading + 1 ct
Earth coupling measurement Yes
Soil resistivity 4-Point Measurement
Test method Wenner or Schlumberger selectable with automatic calculation of test results in Ω-meters, Ω-cm or Ω-feet.
Range (Auto-Ranging) 0.01 to 99.99 kΩ
Resolution 0.01 to 100 Ω
Test voltage 16 or 32 V user selectable
Frequency From 41 to 128 Hz selectable
External voltage measurement
Range (Auto-Ranging) 0.1 to 65.0 V - DC to 450 Hz
Accuracy 2% of reading + 3 cts
Resistance measurement (Bond testing)
Measurement type 2-point (with lead resistance compensation) or 4-point (Kelvin sensing) user selectable
Range (Auto-ranging) 2-point 0.01 Ω to 99.9 kΩ; 4-point 0.001 Ω to 99.99 kΩ
Accuracy ±2% of reading + 2 cts
Test voltage 16 V DC (+, - or auto polarity)
Test current Up to 250 mA max
