AEMC Model 5050 Megohmmeter
$2,895.00
$2,750.25

2130.20

AEMC

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • True Megohmmeter
  • Test voltage combination of 500V, 1000V, 2500V and 5000V
  • Insulation measurements from 30kΩ to 10TΩ
  • Adjustable and programmable test voltage (40 to 5100V)
  • Automatic calculation of DAR, PI and DD values
  • Direct measurement and display of Capacitance and Leakage Current
  • Display resistance, test voltage and run time
  • Programmable test run times and PI ratio times
  • Smooth and Alarm functions
  • Automatic test inhibition if live sample (>25)
  • Automatic discharge and display of discharge voltage
  • Large dual-display with time, voltage and measurements shown
  • Rugged dual wall weatherproof field case
  • Designed and built to IEC safety standards
  • EN 61010-1, 600V Cat. III

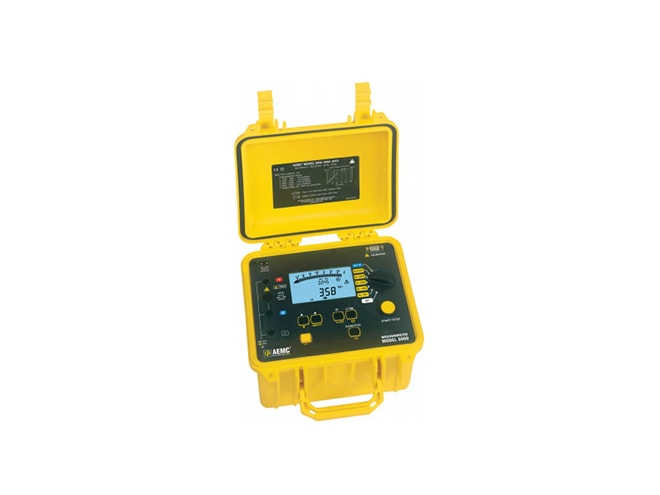

The AEMC model 5050 is a portable, 5000 V megohmmeter that is one of the most innovative products in its class on the market today. The 5050 is the culmination of years of analyzing how megohmmeters are used in everyday applications and incorporating advanced features and functions to automate and facilitate the testing process for these applications.

Testing at 500, 1000, 2500 and 5000 volts, the AEMC model 5050 megohmmeter provides insulation measurements from 30 kΩ to 10 TΩ. The 5050 includes advanced features such as automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric Discharge (DD). The PI ratio times are also user defined. The 5050 displays the test voltage, insulation resistance and the leakage current during and after the test. Capacitance of the sample and discharge voltage present at the test leads is displayed at the conclusion of the test.

The AEMC model 5050 was designed with the highest level of safety features built in and conforms to the most recent international insulation and continuity testing standards including EN 61010-1 and 600V CAT III. Packaged in a rugged insulated case, AEMC 5050 megohmmeters incorporate test inhibit capabilities which will not allow test voltages to be generated if a live sample is detected. The test terminals are recessed to ensure operating safety. The test leads, rated for 5000V for both testing and measurement, are the only truly safety approved 5000V leads on the market today. The 5050 can be operated from an internal rechargeable battery system or from AC line power.

The AEMC Model 5050 megohmmeter ships complete with:

  • Accessory pouch
  • 3 color-coded test leads with integral 5 kV rated hippo clips
  • Jumper lead
  • Rechargeable battery pack
  • Power cord (120 V)
  • User manual

AEMC model 5050 megohmmeter specifications:

Insulation Tests
Test Voltage/Range 500 V: 30 kΩ to 2000 GΩ (2 TΩ)
1000 V: 100 kΩ to 4000 GΩ (4 TΩ)
2500 V: 100 kΩ to 10,000 GΩ (10 TΩ)
5000 V: 300 kΩ to 10,000 GΩ (10 TΩ)
Automatic Voltage (programmable) 40 to 1000 V: 10 V increments
1000 to 5100 V: 100 V increments
Short Circuit Current < 1.6 mA ± 5%
Accuracy 1 kΩ to 40 GΩ: ±5% of reading ± 3 cts
40 GΩ to 10 TΩ: ±15% of reading ± 10 cts
DAR (1 min/30 sec) 0.02 to 50.00
PI (10 min/1 min & user programmable) 0.02 to 50.00
DD: current/test voltage + capacitance 0.02 to 50.00
Capacitance Check 0.005 to 49.99 µF; max resolution 1 nF
Leakage Current Measurement 0.00 nA to 3 mA; max resolution 1 pA
Programmable Run Time 1 to 60 min
Smooth Function (user selectable) Digital filtering stabilized display readings
Discharge After Test Automatic
Discharge Voltage Display Yes
Voltage Test/Safety Check 0 to 1000 VAC/DC (16 to 420 Hz); 1 V resolution
Voltage Warning Indicator Yes > 25 V
Test Inhibition Yes > 25 V
Guard terminal Yes, adjustable from 25 to 1000 V
Power Source Battery: 8 Rechargeable NiMH batteries
Line Power: 85 to 256 VAC (50/60 Hz)
Mechanical
Dimensions 10.63 x 9.84 x 7.09"
Weight 9.5 lbs
Protection Index IP53
Display
Backlight Blue electroluminescent
Display Size 4 x 2.25"
Display Digital: Two 4000-count displays
Analog: 33- segment analog bargraph
Communication
Direct to Printer No
Memory 4 kB
Reading Intervals (programmable 5 sec to 15 min
Test Voltage Display Yes
Elapsed Time Display Yes
Real Time/Date Display No
Test Voltage Lockout User programmed
Storage of Test Results 20 readings
Communication Port None
Software None
PC Operation of Instrument No

Test Leads

AEMC Test Leads
Set of 3, color-coded 10ft 5kv safety leads with alligator clips
$407.00
AEMC Test Leads
Set of 3, color-coded 5kv safety lead with integral hippo clips
$540.00

Batteries/Chargers

AEMC Rechargeable Battery
Replacement rechargeable battery (9.6 V)
$157.00

Accessories

Please consider these optional accessories.

AEMC Fuses
Set of 3 replacement fuses (0.1A, 380V, 5 x 20mm, 10kA) for AEMC 5050 and 5060 Megohmmeters
$28.50
