Requires IFC200 USB Cable & Software Package (Purchased separately)

Features

  • 10 Year Battery Life
  • 1 Second Reading Rate
  • Pushbutton start/stop function
  • Ultra High Speed Download
  • 1,000,000 Reading Storage Capacity
  • Memory Wrap
  • Battery Life Indicator
  • Optional Password Protection
  • Programmable High and Low Alarms
  • Field Upgradeable

What's in the Box

  • NIST traceable calibration certificate

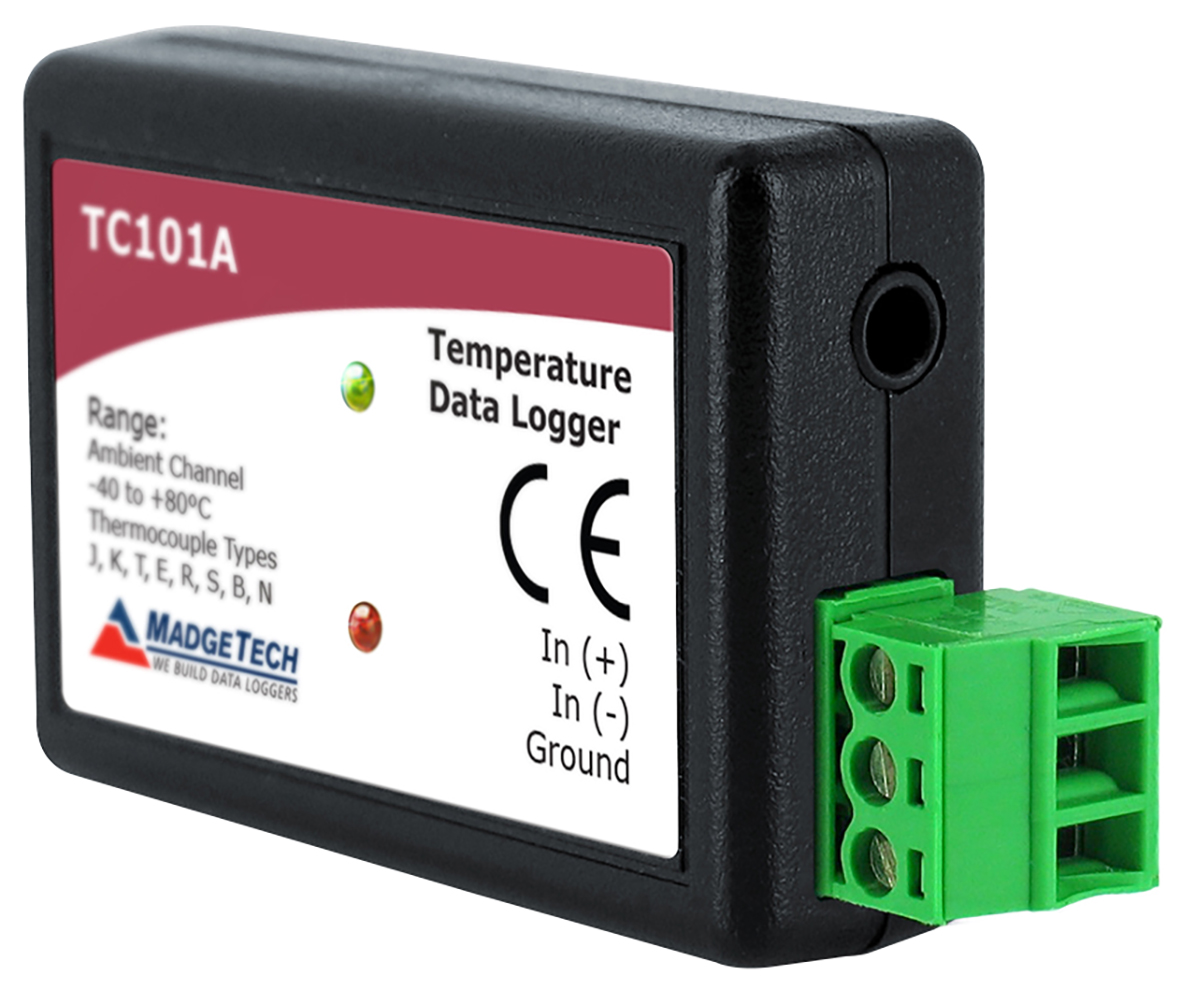

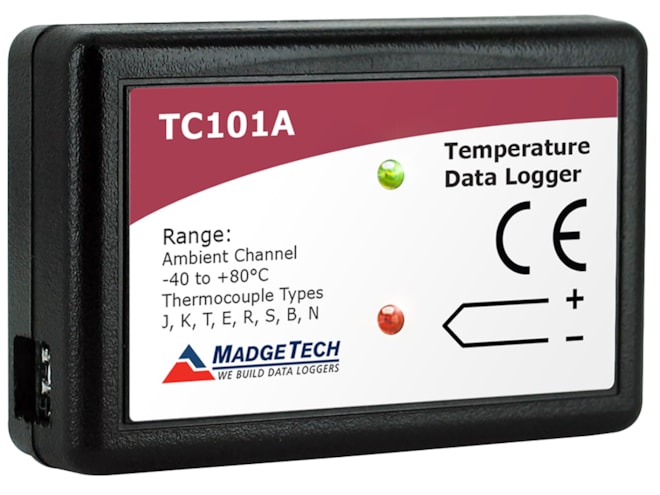

The MadgeTech TC101A is a low cost, state-of-the-art thermocouple-based temperature data logger. Designed with the user in mind, the TC101A is loaded with features making it second to none when it comes to price and performance.

The Madgetech TC101A includes an internal sensor for ambient temperature readings as well as an external channel for thermocouple readings. The external channel connections are available in standard mini plugs, fixed screw terminals or pluggable screw terminals. The TC101A also offers a 10 year battery life, 1 second reading rate, a multiple start/stop function, ultra-high speed download capability, 1,000,000 reading storage capacity, optional memory wrap, battery life indicator, optional password protection, programmable high-low alarms and more.

Using the free MadgeTech software, starting, stopping and downloading from the TC101A is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel for further calculations.

MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units can be upgraded from any PC.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

MadgeTech IFC200 USB Cable & Software
USB interface cable and software package for MadgeTech data loggers
$119.00
$99.00
In Stock

Batteries/Chargers

MadgeTech Replacement Battery
Replacement batteries for MadgeTech 101A series data loggers
$10.00
In Stock

Cases

Carrying cases, spare cases

MadgeTech MT-AluCase Briefcase
Aluminum data logger briefcase, lightweight, durable, 14 or 18 inch wide
$325.00
Part Number Price Available
TC101A-TB
Show Configuration
Base Price
$199.00
Connection
Pluggable screw terminals
Reconfigure
$199.00 1

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-10 business days". Click here to select options
