$176.70

ACD-14 TRMS-PLUS

Amprobe

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Features

  • True RMS
  • Dual displays - Simultaneous reading of amperage & voltage
  • AC & DC current to 600 V
  • AC current to 600 A
  • Resistance, Capacitance & Frequency measurement
  • Temperature with Type-K Thermocouple probe
  • Thin jaws to access tight measurement spaces
  • Micro amp measurement for testing flame sensors
  • (2) 3-3/4 digit, 4000 count LDCs
  • Diode test & continuity buzzer
  • Hold and Maximum reading functions
  • In rush current
  • Accommodates conductors up to 28 mm (1.1”) in diameter
  • Auto ranging
  • Rubber over-molded case

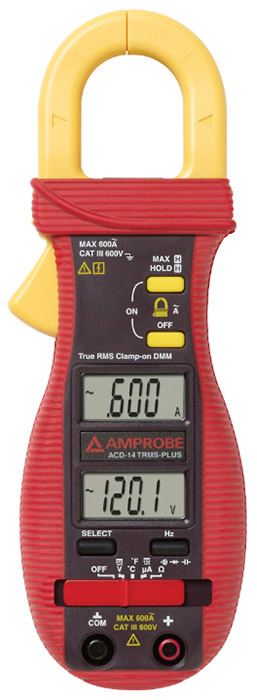

The Amprobe ACD-14 TRMS-PLUS clamp multimeter with dual display is the professional's choice for both HVAC and electrical applications due to its complete set of measuring features. Thin jaws allow access to tight measurement areas while still accommodating conductors up to 28 mm. The ACD-14 TRMS-PLUS's dual displays allow for viewing amperage and voltage simultaneously. True RMS functionality enables accurate readings in noisy environments.

The Amprobe ACD-14 TRMS-PLUS clamp multimeter measures AC & DC voltage to 600 V, AC current to 600 A, capacitance to 3000 µF, Ohms to 40.00 MΩ, frequency to 600 F, and temperature from -4°F to 999°F with a Type-K thermocouple probe. This Amprobe multimeter also measures DC & AC micro-amperage in the 400.0 µA and 2000 µA ranges. Other features of the ACD-14 TRMS-PLUS include continuity buzzer, diode test, Hold and Maximum reading functions, auto power-off, and low battery indication.

The Amprobe ACD-14 TRMS-PLUS clamp multimeter ships complete with:

  • Test leads
  • Carrying case
  • Bead-type thermocouple w/banana plug
  • Manual

Amprobe ACD-14 TRMS PLUS Clamp Multimeter Specifications

Feature Range Accuracy
DC Voltage
  400.0 mV ±(0.3% rdg + 4 dgt)
  4.000 V, 40.00 V, 400.0 V ±(0.5% rdg + 3 dgt)
  600.0 V ±(1.0% rdg + 4 dgt)
  NMRR: >50 dB @ 50/60 Hz
  CMRR: >120 dB @ DC to 60 Hz, Rs=1kO
  Input impedance: 10 MΩ, 30 pF nominal (1000 MΩ for 400.0 mV range)
AC Voltage (50 Hz ~ 500 Hz) Average sensing
  4.000 V, 40.00 V, 400.0 V ±(1.5% rdg + 5 dgt)
  600.0 V ±(2.0% rdg + 5 dgt)
  CMRR: >60 dB @ DC to 60 Hz, Rs=1kO
  Input impedance: 10 MΩ, 30 pF nominal
AC Current (Clamp-on 50/60 Hz)
  40.00 A ±(1.5% rdg + 8 dgt)
  400.0 A ±(1.5% rdg + 8 dgt)
  600.0 A ±(1.5% rdg + 8 dgt)
Max/Hold (AC current only) Specified accuracy ± 50 digits for changes > 25 ms in duration
Ohms
  400.0 Ω ±(0.8% rdg + 8 dgt)
  4.000 kΩ, 40.00 kΩ, 400.0 kΩ ±(0.6% rdg + 4 dgt)
  4.000 MΩ ±(1.0% rdg + 4 dgt)
  40.00 MΩ ±(2.0% rdg + 4 dgt)
Open circuit voltage 0.4 VDC typical
Audible continuity tester Audible threshold: between 10 Ω and 120 Ω
Capacitance
  500.0 nF, 5.000 µF, 50.00 µF,
  500.0 µF, 3000 µF* ±(3.5% rdg + 6 dgt)***
*Additional 50.00 nF range accuracy is not specified
**Accuracies with film capacitor or better
***Specified with battery voltage above 2.8 V (approximately half full battery). Accuracy decreases gradually to 12% at low battery warning voltage of approximagely 2.4 V
DC µA
Range Accuracy Burden Voltage
400.0 µA ±(2.0% rdg + 4 dgt) 2.8 mV/µA
2000.0 µA ±(1.5% rdg + 3 dgt) 2.8 mV/µA
AC µA (50 Hz ~ 500 Hz)
400.0 µA ±(2.0% rdg + 5 dgt) 2.8 mV/µA
2000.0 µA ±(1.5% rdg + 5 dgt) 2.8 mV/µA
Frequency
Volts Range/Sensitivity Accuracy
400.0 mV 10 Hz to 2 kHz/300 mV ±(0.5% rdg + 4 dgt)
4.000 V 5 Hz to 40 kHz/4 V ±(0.5% rdg + 4 dgt)
40.00 V 5 Hz to 100 kHz/28 V ±(0.5% rdg + 4 dgt)
400.0 V 5 Hz to 100 kHz/100 V ±(0.5% rdg + 4 dgt)
600 V 5 Hz to 5 kHz/500 V ±(0.5% rdg + 4 dgt)
Diode Tester
Open circuit voltage Test current typical
< 1.6 VDC 0.25 mA
Temperature (Type-K Thermocouple)
  -20°C to 300°C ±(2% rdg + 3°C)
  -3010°C ~ 537°C ±(3% rdg + 3°C)
  -4°F to 572°F ±(2% rdg + 6°F)
  573°F ~ 999°F ±(3% rdg + 6°F)
