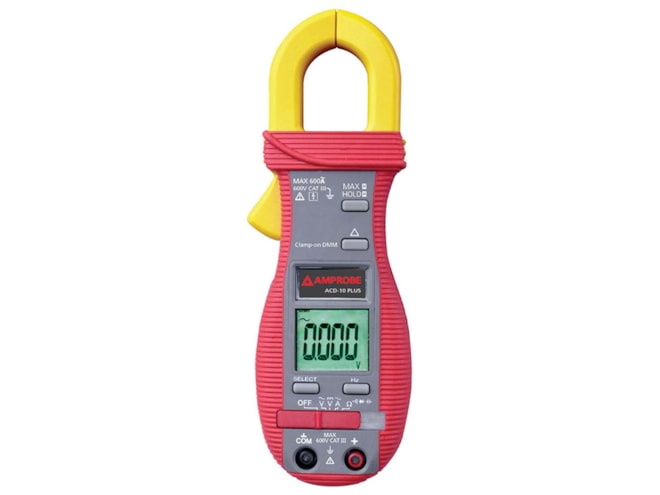

Amprobe ACD-10 PLUS Clamp Meter

Name: Amprobe ACD-10 PLUS Clamp Meter
Price: 133.99 USD
Availability: BackOrder

600 A clamp meter with thin jaws for tight measurement areas .

$133.99

View Company Reviews

Part Number

ACD-10 PLUS

Manufactured

By Amprobe

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

AC & DC voltage to 600 V
AC current to 600 A
Thin jaws, only 10 mm (0.4" thick)
Resistance to 40 MΩ
Continuity buzzer
Capacitance to 3000 uF
Frequency measurement
In rush current
Hold & maximum reading functions
Accommodates conductors up to 26 mm (1.02") in dia.
Auto ranging

The Amprobe ACD-10 PLUS is a 600 A clamp meter. Featuring jaws thinner than standard clamp meters, this Amprobe clamp meter is able to access tight measurement areas while still accommodating conductors up to 25 mm. The ACD-10 PLUS provides a full range of measurements and is a very versatile clamp-style multimeter.

The Amprobe ACD-10 PLUS clamp meter accurately measures AC & DC voltage to 600V, AC current to 600A, resistance to 40MΩ, capacitance to 3000 µF, and frequency. Frequency is measured by either jaws or test leads. Measurement values are easily viewed on the ACD-10 PLUS's 3-3/4 digit LCD display. Other features of the Amprobe ACD-10 PLUS include auto ranging, a continuity buzzer, relative zero mode, hold and maximum reading functions.

The Amprobe ACD-10 PLUS clamp multimeter ships complete with:

Test leads
Battery
Carrying pouch
Manual

Amprobe ACD-10 PLUS Clamp Multimeter Specifications

Feature	Range	Accuracy
DC Voltage
	400.0 mV 4.000, 40.00, 400.0 V 600 V NMRR: CMRR: Input Impedance Transient protection:	±(0.03% + 4 dgt) ±(0.5% + 3 dgt) ±(1.0% + 4 dgt) >50 dB@DC, 50/60 Hz >120 dB@DC, 50/60 Hz, Rs=1 kHz 10 MΩ, 30 pF nominal (1000 MΩ for 400.0 mV range) 6.5 kV (1.2/50 µs surge)
AC Voltage (50 Hz ~ 500 Hz)
	4.000, 40.00, 400.0 V 600 V CMRR: Maximum crest factor: Input impedance: Transient protection: ACD-10 PLUS:	±(1.5% + 5 dgt) ±(2.0% + 5 dgt) >60 dB @ DC to 60 Hz, Rs=1 kΩ less than 1.75:1 at full scale & less than 3.5:1 at half scale 10 MΩ, 30 pF nominal 6.5 kV (1.2/50 µs surge) Average sensing
AC Current
	40.00, 400.0, 600 A Overload proctections: ACD-10 PLUS	±(1.5% + 8 dgt)^1,2,3 ACA Clamp-on jaws:600 A rms continuous Average sensing
1) Max induced error from adjacent current carrying conductor: 0.05 A 2) Specified accuracy is from 1% to 100% of range and for measurements made at the jaw center. When the conductor is not positioned at the jaw center, position errors introduced are: Add 2% to specified accuracy for measurements made BEYOND jaw marking lines (toward jaw opening). 3) Add 8 digits to specified accuracy @ reading < 10% of range.
Resistance
	400.0 Ω 4.000, 40.00, 400.0 kΩ 4.000 MΩ 40.00 MΩ Open circuit voltage: Transient protection:	±(0.8% + 8 dgt) ±(0.6% + 4 dgt) ±(1.0% + 4 dgt) ±(2.0% + 4 dgt) 0.4 VDC typical 6.5 kV (1.2/50 µs surge)
Frequency
400.0 mVac 4.000 Vac 4.000, 40.00 Vac 400.0 Vac 600 Vac 400.0 Aac	0 Hz ~ 2 kHz 5 Hz ~ 5 kHz 5 Hz ~ 100 kHz 5 Hz ~ 10 kHz 5 Hz ~ 5 kHz 40 Hz ~ 400 Hz	±(0.5% + 4 dgt) ±(0.5% + 4 dgt) ±(0.5% + 4 dgt) ±(0.5% + 4 dgt) ±(0.5% + 4 dgt) ±(0.5% + 4 dgt)
Display counts:	5000
Resolution:	0.001 Hz
Overload protection:	ACA Clamp-on jaws: AC 600 A rms continuous
Transient protection:	VAC input jacks: 6.5 kV (1.2/50 µs surge)
Capacitance
	Range¹	Accuracy^2,3
	500.0 nF, 5.000 µF 50.00 µF, 500.0 µF, 3000 µF	±(3.5% + 6 dgt)
1) Additional 50.00 nF range accuracy is not specified 2) Accuracies with film capacitor or better 3) Specified with battery voltage above 2.8 V (approx. half full battery.) Accuracy decreases gradually to 12% at low battery warning voltage of approximately 2.4 V
Transient protection:	6.5 kV (1.2/50 µs surge)
Audible continuity tester
Audible indication:	between 10 Ω and 120 Ω
Transient protection:	6.5 kV (1.2/50 µs surge)
Max hold* (where applicable) Specified accuracy ± 50 digits for changes > 25 ms in duration
