$387.79

HD160C

Amprobe

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Features

  • Voltage up 1500 V DC & 1000 V AC
  • Current up to 2 A DC & AC
  • Resistance up to 40 MΩ
  • Capacitance up to 400 µF
  • Temperature: -4°F to 2372­°F (-20°C - 1300°C)
  • True RMS
  • CAT IV 1000 V safety rating
  • IP67 rated
  • Temperature, Frequency and Capacitance measurement
  • Drop-resistant housing and PCB mounting
  • 10,000 count resolution w/bar graph
  • Magne-Grip holster w/magnetic hanging strap

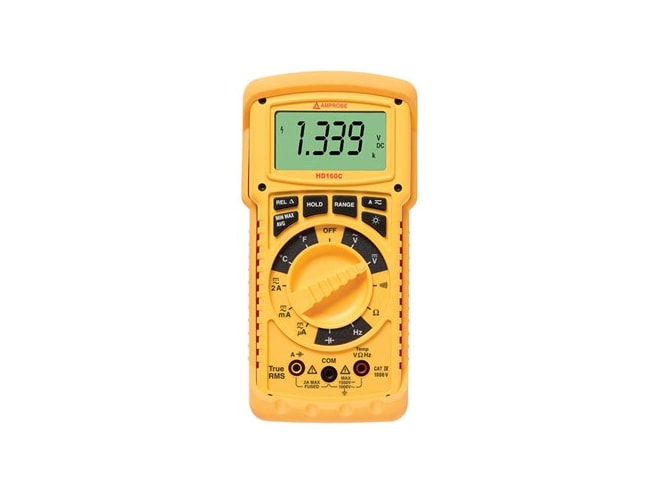

The heavy duty Amprobe HD160C multimeter is a professional-grade digital multimeter designed for use in harsh environments. The Amprobe HD160C is IP67 rated to prevent dirt, grime, and moisture from entering the case and causing inaccurate readings or damaging shorts. Additionally, the housing is built of tough, fire retardant thermoplastic resistant to grease and chemical spills. All sensitive components are shock-mounted for a drop resistance to at least eight feet. These protective features make this Amprobe multimeter unusually rugged and reliable in everyday heavy use applications.

The Amprobe HD160C multimeter has an extended voltage measurement capability of 1500 V DC and 1000 V AC which is unmatched by any other line of digital multimeters. This Amprobe multimeter also accurately measures AC/DC current, temperature, frequency, and capacitance. All measured values are shown on the HD160C's high resolution LCD display with bargraph and Digi-Glo bright backlight. An audible continuity test is also included. The Amprobe HD160C multimeter has a CAT IV 1000 V safety rating.

The Amprobe HD110C heavy duty digital multimeter ships complete with:

  • Test leads(TL1500)
  • Battery
  • Hex wrench in holster
  • Holster w/Magne-Grip strap
  • Type K Thermocouple probe(TP255)
  • Temperature adapter(TA-1A)
  • Manual

Amprobe HD160C Multimeter Specifications

Function Range Accuracy
DC Volts 1000 mV, 10 V, 100 V,
1500 V
±(0.1% rdg + 5 dgt)
Resolution 0.1 mV in 1000 mV range
Input Impedance 10 MΩ
CMRR >120 dB up to 1500 V DC
NMRR >60 dB at 50 or 60 Hz
OL Protection 1500 V DC or 1000 V AC RMS
AC Volts True RMS 1000 mV (45 Hz to 400 Hz)
10 V, 100 V (45 Hz to 500 Hz)
10 V, 100 V (500 Hz to 2 kHz)
1000 V (45 Hz to 1 kHz)
±(1.2% rdg + 10 dgt)
±(1.2% rdg + 10 dgt)
±(2.0% rdg + 10 dgt)
±(2.0% rdg + 10 dgt)
Resolution 0.1 mV in 1000 mV range
Input Impedance 10 MΩ
Conversion type True rms, AC coupled 5 % to 100 % of range
Crest factor ≤ 3
OL Protection 1500 V DC or 1000 V AC RMS
DC Current 100 µA
1000 µA to 400 mA
2 A
±(0.5% rdg + 10 dgt)
±(0.5% rdg + 5 dgt)
±(1.5% rdg + 10 dgt)
Resolution 0.01 µA in 100 µA range
Input protection 2 A/1500 V fast blow ceramic fuse
Burden voltage µA range of 1 mV/a µA, mA range of 10 mV/1 mA, 2 A range of 500 mV/1 A, 500 mV max.
OL Protection A Input (F 2 A/1500 V, size 8 x 65 mm IR fast blow ceramic)
AC Current True RMS 100 µA to 100 mA
400 mA
2 A
±(1.5% rdg + 10 dgt)
±(2.0% rdg + 10 dgt)
±(2.5% rdg + 10 dgt)
Resolution 0.01 µA in 100 µA range
Burden voltage see DC current
Conversion type True RMS AC coupled 10 to 100% of range
Crest factor ≤ 3
OL Protection See DC current
Resistance 1000 Ω to 1000 kΩ
10 MΩ
40 MΩ
±(0.5% rdg + 8 dgt)
±(1.0% rdg + 10 dgt)
±(2.0% rdg + 10 dgt)
Resolution 0.1 Ω in 1000 Ω range
Overload Protection 1500 V DC or 1000 V AC RMS
Continuity test
Audible indication Less than 40 Ω
Response time 100 ms
Overload protection 1500 V DC or 1000 V AC RMS
Capacitance 40 nF, 400 µF
400 nF to 40 µF
±(3.0% rdg + 10 dgt)
±(3.0% rdg + 5 dgt)
Resolution 0.01 nF
Test voltage < 1 V
Test frequency 1.3 Hz on 40 nF to 400 µF ranges; 0.7 Hz on 400 µF range
Overload protection 1500 V DC or 1000 V AC RMS
Temperature -20°C ~ 10°C
10°C ~ 200°C
200°C ~ 1300°C
-4°F ~ 50°F
50 °F ~ 400°F
400°F ~ 2372°F
±(2.0% rdg + 4°C)
±(1.0% rdg + 3°C)
±(2.0% rdg + 2°C)
±(2.0% rdg + 8°F)
±(1.0% rdg + 6°F)
±(2.0% rdg + 4°F)
Resolution 1°C, 1°F
Overload protection 1500 V DC or 1000 V AC RMS
