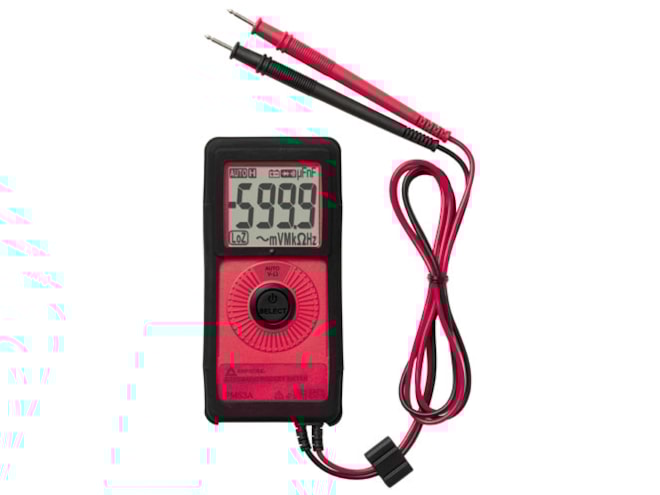

Amprobe PM53A Digital Multimeter

Compact digital multimeter measuring AC & DC voltage, capacitance, resistance and frequency with AutoTect and VolTect technologies.

Retired products cannot be ordered

For replacement see the Amprobe PM55A Digital Multimeter

View Company Reviews

Part Number

PM53A

Manufactured

By Amprobe

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Features

Display: 3-5/6 digit, 6000 count
AutoTect - automatically detects AC or DC volts or resistance measurement
VolTect - built-in noncontact voltage detector
Max Voltage (AC or DC): 450 V
Resistance: 6.000 MΩ

The Amprobe PM53A digital multimeter is a shirt-pocket sized meter, just 3/8" thick and weighing less than 3 ounces. Despite its small size, the PM53A offers full functionality with AC and DC voltage to 450 V, resistance to 6 MΩ, capacitance to 100 µF, frequency to 30 kHz and continuity with beeper. The Amprobe PM53A also offers VolTect, a built-in, non-contact voltage detection for AC voltages.

A key feature of the Amprobe PM53A digital multimeter is AutoTect, which automatically selects AC voltage, DC voltage or resistance measurement based on the test point to which the leads are connected. Fully autoranging, this meter offers seven different measurement functions plus features that are usually found in much more expensive and larger meters.

The digital display is oversized with large digits and unit icons in the display. The PM53A is fully safety rated to CAT III 300 V, CAT II 450 V and is UL approved.

Amprobe PM53A digital multimeters ship complete with:

Silicone protective holster
Attached test leads
Battery
Manual

Amprobe PM53A Digital Multimeter Specifications

Function	Range	Accuracy
DC Voltage
	6.000 V	±(1.0% + 5 dgt)
	450.0 V	±(1.2% rdg + 5 dgt)
NMRR		> 30 dB @ 50 Hz/60 Hz
CMRR		> 100 dB @ dc, 50 Hz/60 Hz;Rs=1 kΩ
Input Impedance		AutoTect Lo-Z V DC: 160 kΩ, 160 pF nominal
V DC AutoTect threshold		+1.2 V DC or < -0.6 V DC nominal
AC Voltage
50 Hz - 60 Hz	6.000 V, 60.00 V, 450.0 V	±(1.5% rdg + 5 dgt)
CMRR		> 60 dB @ dc to 60 Hz, Rs=1 kΩ
Input Impedance		AutoTect Lo-Z V DC: 160 kW, 160 pF nominal
ACV AutoTect threshold		+1.5 V AC 50 Hz/60 Hz nominal
Capacitance
	500.0 nF, 5.000 µF, 50.00 µF
	100.0 nF, 1000 nF, 10.0 µF,
	100.0 µF ^{1 3}	±(3.5% + 6 dgt)⁴
¹Accuracy below 50 nF is not specified
²Accuracies with film capacitor or better
³Top range. Updates > 1 minute on large values
⁴Specified with battery voltage above 2.8 V (half full battery).
Resistance
	6.000 kΩ¹	±(1.2% rdg + 6 dgt)²
	60.00 KΩ, 600.0 KΩ	±(1.0% rdg + 4 dgt)
	6.000 MΩ	±(2.0% rdg + 4 dgt)
Open circuit voltage		0.4 V DC typical
¹AutoTect is for 6.000 kΩ ~ 6.000 MΩ ranges
²Add 40 dgt to specified accuracy while reading is below 20% of range
Frequency
	100 Hz, 1 kHz, 10 kHz¹	±(0.5% + 4 dgt)< 20 V sine RMS
¹Sensitivity (Sine-rms): Hz in Auto-VW position:> 3 V
VolTect
Typical voltage	Bar graph indication
15 V to 55 V	-
30 V to 85 V	--
55 V to 145 V	---
85 V to 190 V	----
above 120 V	----
Indication	Bar graph segments & audible beep tones proportional to field strength
Detection frequency	50/60 Hz
Detection antenna	Top left corner of the meter
Audible continuity tester
Open circuit voltage	0.4 V DC typical
Audible threshold	175 Ω	± 125 Ω
