Features

  • DC Voltage
    • Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V
    • Accuracy: ±(0.7 % rdg + 1 dgt)
  • AC Voltage
    • Ranges: 400 mV, 4 V, 40 V, 400 V, 750 V
    • Accuracy: up to ±(1.5 % rdg + 4 dgts)
  • AC/DC Current
    • Ranges: 400 μA, 4 mA, 40 mA, 300 mA, 10 A
    • Accuracy: up to ±(1.0 % rdg + 1 dgt) DC; ±(1.5 % rdg + 4 dgts) AC
  • Resistance
    • Ranges: 400 Ω, 40 kΩ, 4 MΩ
    • Accuracy: up to ±(1.0 % rdg + 4 dgts)
  • Capacitance
    • Ranges: 4 μF, 40 μF, 400 μF, 4000 μF
    • Accuracy: up to ±(5.0 % rdg + 5 dgts)
  • Temperature
    • Range: -4 °F to 1832 °F
    • Accuracy: ± (1.0 % rdg + 3 °C )
  • Frequency (autoranging)
    • Ranges: 4 kHz, 40 kHz, 400 kHz, 4 MHz, 40MHz
    • Accuracy: ±(0.1 % rdg + 3 dgts)
  • Continuity: Audible Indication < 35 Ω
  • Peak Hold, Diode Test, Overload Protection
  • 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
  • CAT II 1000 V, CAT III 600 V safety rating
  • UL listed

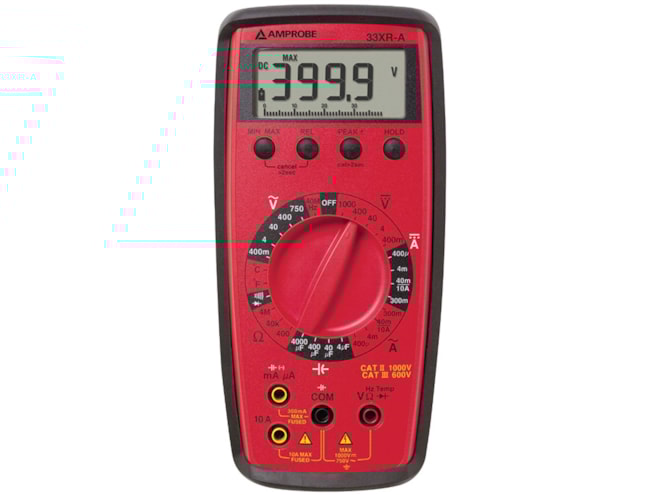

The Amprobe 33XR-A is a manual ranging digital multimeter with temperature and capacitance measurement. With a Magne-Grip holster and magnetic hanging strap to keep the meter convenient, the 33XR-A is designed for field service technicians. The meter includes a Cat II 1000V, Cat III 600V safety rating.

33XR-A multimeters include all the features and functions needed for a wide range of applications. The meter measures DC voltage to 1000 V, AC voltage to 750 V, AC/DC current to 10 A, resistance to 4 MΩ, frequency to 40MHz, capacitance to 4000 μF, and temperature from -4 °F to 1832 °F. Additionally, the meter has a continuity beeper, diode test, and overload protection. All measurements have wide testing ranges and high accuracy. Testing results are displayed on the 3-3/4 digit LCD with 41-segment analog bar graph.

Other features of the Amprobe 33XR-A digital multimeter includes an input warning tone when test leads are put in the wrong jacks; Min/Max, Relative, Peak and Data Hold; Auto power-off and a separate door for battery and fuse access.

The Amprobe 33XR-A digital multimeter ships complete with:

  • Test leads with threaded alligator clips (TL36A)
  • 9 V battery
  • Magne-Grip holster with magnetic hanging strap (H2-XRA)
  • Temperature adapter (TA-1)
  • Type K thermocouple probe (TP255A)
  • Spare fuse
  • Manual
