$121.15

Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call a Temperature Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 400mV, 4V, 40V, 400V, 600V DC voltage ranges
    • ±(0.5% rdg + 2 dgts) accuracy
  • 4V, 40V, 400V, 600V AC voltage ranges
    • Up to ±(1.2% rdg + 5 dgts) accuracy
  • 40A, 400A current ranges
    • ±(2.0% rdg + 6 dgts) accuracy
  • 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ resistance
    • Up to ±(1.0% rdg + 4 dgts) accuracy
  • Continuity alarm at less than 25Ω
  • 1.2mA approximate diode test current
  • CAT III 600V safety rating
  • Advanced VoltTect non-contact voltage detection
  • Noise filter for stable and consistent readings

What's in the Box

  • Test leads
  • Battery
  • Carry Case
  • Manual

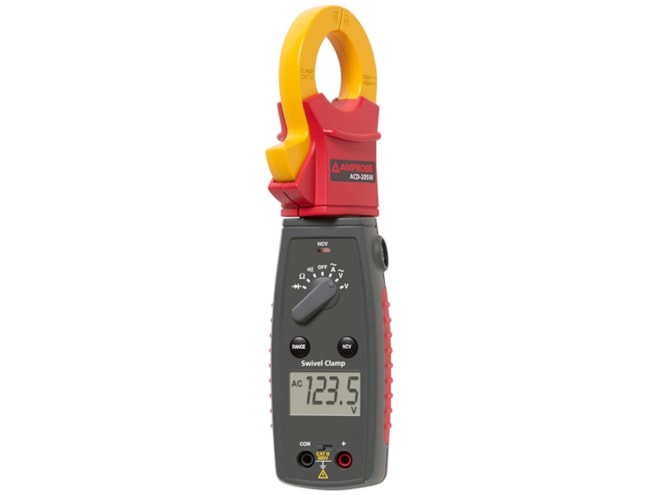

The Amprobe ACD-20SW swivel clamp meter includes a number of functions and features as well as a CAT III 600V safety rating making these meters ready for use in nearly any electrical or HVAC application.

The ACD-20SW performs all the basic functions including AC/DC voltage, AC current, resistance, continuity and diode test. Both meters include wide measurement ranges and high accuracy. Other features of the meters include advanced VoltTect non-contact voltage detection, a slim jaw design for one-hand operation, auto ranging for quick checks and manual ranging for precise measurements, auto power-off and data hold. The meters also incorporate a noise filter for stable and consistent readings in electrically noisy environments.
