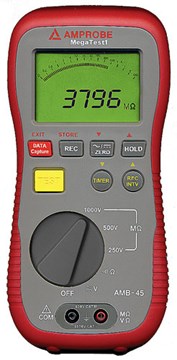

Amprobe AMB-45 Insulation Resistance Tester
Tests the insulation of wires, cables, transformers and electrical motors
Need Help? Call a Temperature Engineer 1-800-884-4967
We're open 8:00am to 5:30pm ET
- AC/DC Voltage
- Range: 0 to 600V
- Accuracy: 1.5% rdg + 5 dgts (AC); 1% rdg + 3 dgts (DC)
- Range: 400Ω / 4000Ω
- Accuracy: 1% rdg + 5 dgts
- MΩ (autoranging)
- 4/40/400/400M (250V)
- 4/40/400/4000M (500V)
- 4/40/400/400M (1000V)
- 3% rdg + 5 dgts <2GΩ
- 5% rdg + 5 dgts <4GΩ
- CAT III 600V safety rating
- Programmable timer to perform the Dielectric Absorption Ratio Test
- Sensitive Ohmmeter for checking resistance of motor windings
- Built in voltmeter
- Internal memory to store measurements for future reference
The Amprobe AMB-45 insulation resistance tester tests the insulation of wires, cables, transformers and electrical motors. With selectable test voltages up to 1000 V and a rugged, durable design, the AMB-45 is both fast and easy-to-use. By including a number of features not found on similar products, the AMB-45 distinguishes itself as the most versatile product in its class.
Amprobe AMB-45 insulation resistance testers provides fast and accurate readings across all ranges. Results are displayed on the 70 x 46mm LCD with 60 segment analog bar indicator. The tester has an internal memory to store measurements for future reference and includes software to facilitate data download to PC for further analysis and archival storage. The AMB-45 includes a programmable timer to perform the Dielectric Absorption Ratio test. Other features of the Amprobe AMB-45 include a sensitive ohmmeter for checking the resistance of motor windings and a built-in voltmeter.
The Amprobe AMB-45 insulation resistance tester ships complete with test leads and PC software.
