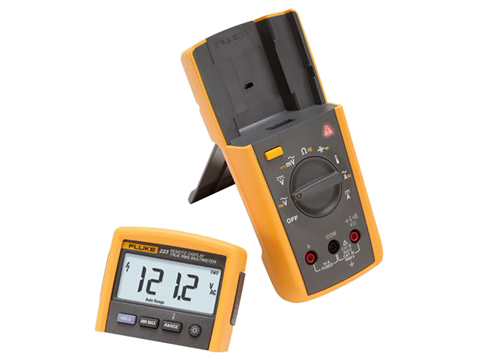

Fluke 233 Multimeter
Removable display allows meter and the display to be in two different locations for unusual measurement scenarios.
Overview
Features
- DC Voltage
- Range: 0.1 mV to 1000 V
- Accuracy: 0.25% + 2
- AC Voltage
- Range: 0.1 mV to 1000 V
- Accuracy: 1.0% + 3
- DC Current
- Range: 0.1 mA to 10 A
- Accuracy: 1.0% + 3
- AC Current
- Range: 0.1 mA to 10 A
- Accuracy: 1.5% + 3
- Resistance: 0.1Ω to 40 MΩ
- 6000 Counts
- Capacitance: 1000 nF to 9999 µF
- Frequency: 0.1 Hz to 50.00 kHz
- CAT IV 600 V / CAT III 1000 V safety rating
Description
The Fluke 233 True-RMS remote display digital multimeter allows you to be in two places at once. The removable display gives the user ultimate flexibility in unusual measurement scenarios. The display can be placed where you can see it and the meter where it is convenient. The removable display eliminates the dilemma of trying to take measurements in hard-to-reach places, or taking measurements in machines or panels that are physically separated from a limit or isolated switch. Low power wireless technology allows the display to be up to 10 meters (33 ft) away from the point of measurement.
Fluke 233 multimeters feature True-RMS AC voltage and current for accurate measurements on non-linear signals. The meter
measures up to 1000V AC and DC and measures up to 10A. The capacitance range is 10,000 µF, frequency to 50 kHz and a
built-in thermometer conveniently takes temperature readings with the same instrument. The meter also has resistance,
continuity and diode tests. When the display is connected to the meter, the radio transmitter automatically turns off
and the Fluke 233 can be used as a conventional multimeter.
The Fluke 233 True-rms remote display digital multimeter ships complete with:
- Test leads
- Alligator clips
- 80BK-A temperature probe
- Manual
- CD-ROM
- AA Batteries
