Overview

Features

  • Aluminum, brass and stainless steel materials available
  • Maximum pressure ranges between 600 PSIG and 6,000 PSIG
  • Fluid Media: Air & gas, hydraulic oil & 0.873 specific gravity, and water & 1.0 specific gravity
  • Flow Ranges from 0.05 to 1 GPM up to 20 to 150 GPM and from 1.5 to 12 SCFM up to 150 to 1,300 SCFM
  • ±2.5% to ±4% full scale accuracy
  • NEMA 4X enclosure

Description

AW-Lake variable area flow meters are accurate, dependable flow monitors configurable for numerous applications. These meters use a variable annular orifice with compression spring recoil allowing unrestricted mounting for vertical, horizontal or inverted installation. A rugged, reliable construction is used so these AW-Lake variable area flow meters can withstand outdoor/exposed applications and frequent maintenance wash-downs.

The bodies of the AW-Lake variable area flow meters can be ordered in aluminum, brass, or stainless steel to meet most chemical compatibility and pressure rating needs. These AW-Lake variable area flow meters have a measuring accuracy of ±2.5% of full scale in the center third of the measuring range, and ±4% in upper and lower thirds. AW-Lake variable area flow meters also feature a stainless steel sharp-edged orifice for durability and viscosity stability.

For more information regarding optional flow directions, including bi-directional flow and reverse flow, please contact one of our engineers today.

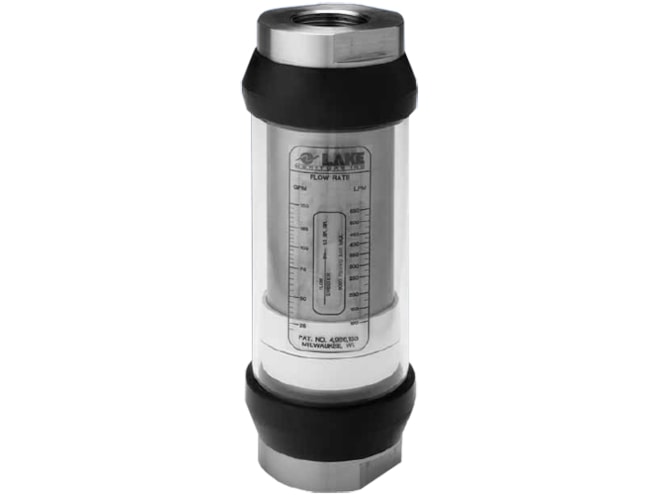

Basic In-Line Liquid Flow Rate Meter

The AW-Lake basic in-line flow meters are ideal for many water applications, monitoring case drain flows, pump performance and media flows through hydraulic circuits and sub-circuits. Designed for liquids, this meter provides a visual indication of the flow rate through the meter.

Pneumatic Flow Meter

The AW-Lake pneumatic flow meters are ideal for monitoring air compressor outputs, pneumatic tool consumption and industrial gas flows. Like the liquid version, these meters utilize a spring inlet or outlet. Straight plumbing is not required for the pneumatic meters, nor is vertical pipe mounting.

High-Temperature Flow Rate Meters

The AW-Lake high-temperature flow meters enable flow monitoring of barrel heating fluids, thermal transfer fluids such as Syltherm® coolant flows through heat exchangers, as well as flows through hydraulic circuits and sub-circuits with elevated temps. There are two maximum temperature ratings available, 400°F (204°C) or 600°F (315°C), depending on your monitoring needs.

Flow Rate Alarms / Flow Switches

In addition to indicating the instantaneous flow rate, the AW-Lake flow rate alarms have up to two field adjustable, dry-contact, SPDT switches. Common applications include mobile hydraulic equipment and industrial process control, ensuring sufficient flow of coolants and lubricants. These AW-Lake meters provide economical protection by activating the onboard switch(s) when the measures flow rate differs from the adjustable set point.

Phosphate Ester Flow Rate Meter

The AW-Lake basic in-line flow meters are compatible with aviation lubricants such as Skydrol®, as well as fire-retardant fluids such as Pydraul®, Fyrquel® and Houghton 900® series. These AW-Lake meters include a direct-reading scale corrected for phosphate media and use the same variable annular orifice technique with compression spring recoil.

Flow Rate Transmitter

The AW-Lake flow rate transmitters are ideal for batching, industrial process control, mobile hydraulic equipment and computer/PLC-controlled hydraulic system monitoring applications. In addition to the visual indication of the flow rate, these AW-Lake transmitters also provide an analog 4-20mA, 0-5Vdc, 1-5Vdc, and 20-2000Hz square-wave pulse output.

Hydraulic System Test Analyzers

The AW-Lake hydraulic system test analyzers are used to diagnose faults in hydraulic circuits, determine hydraulic horsepower and test for component wear such as hydraulic valve and cylinder leakage. The analyzer consists of a flow meter, glycerin filled pressure gauge (Style K) or a bi-metal temperature gauge/dry pressure gauge (Style T) and a precision needle-type load valve. The AW-Lake analyzer includes a comprehensive operator's manual that describes testing of various system components.

Applications

This product can be used in the following applications:

In Stock

Manufacturer Stock

Part Number Price Available
G3A-4AB-02
$262.00 167 in stock
G3A-4AB-15
$262.00 167 in stock
G3A-4AT-02
$262.00 167 in stock
G3A-4AT-15
$262.00 167 in stock
G3A-4AF-02
$262.00 161 in stock
G3A-4AF-15
$262.00 161 in stock
G3A-4AB-05
$262.00 116 in stock
G3A-4AB-10
$262.00 116 in stock
G3A-4AF-05
$262.00 116 in stock
G3A-4AF-10
$262.00 116 in stock
G3A-4AT-05
$262.00 116 in stock
G3A-4AT-10
$262.00 116 in stock
G3A-4AG-02
$262.00 90 in stock
G3A-4AS-02
$262.00 61 in stock
G3A-4AS-05
$262.00 61 in stock
G3A-4AS-10
$262.00 61 in stock
G3S-5AB-02
$645.00 55 in stock
G3S-5AB-05
$645.00 55 in stock
G3S-5AB-10
$645.00 55 in stock
G3S-5AB-15
$645.00 55 in stock
H3A-4AS-02
$388.00 51 in stock
G3B-4AB-02
$330.00 50 in stock
G3B-4AB-05
$330.00 50 in stock
G3B-4AB-10
$330.00 50 in stock
G3B-4AB-15
$330.00 50 in stock
B3A-6WB-10-BI
$337.00 45 in stock
M3A-4AB-02
$603.00 42 in stock
M3A-4AB-05
$603.00 42 in stock
M3A-4AB-10
$603.00 42 in stock
M3A-4AS-02
$603.00 42 in stock
M3A-4AS-10
$603.00 42 in stock
G3A-4AB-01
$262.00 40 in stock
G3A-4AF-01
$262.00 40 in stock
G3A-4AS-01
$262.00 40 in stock
G3A-4AT-01
$262.00 40 in stock
G3B-4AB-01
$330.00 40 in stock
G3S-5AB-01
$645.00 40 in stock
H3A-4AB-01
$388.00 40 in stock
H3A-4AS-01
$388.00 40 in stock
M3A-4AB-01
$603.00 40 in stock
M3A-4AS-01
$603.00 40 in stock
G3A-4AA-01
$262.00 34 in stock
G3A-4AA-02
$262.00 34 in stock
G3A-4AA-05
$262.00 34 in stock
G3A-4AA-10
$262.00 34 in stock
M3A-4AA-01
$603.00 34 in stock
M3A-4AA-05
$603.00 34 in stock
M3A-4AA-10
$603.00 34 in stock
G3B-4AS-01
$330.00 32 in stock
G3B-4AS-02
$330.00 32 in stock
G3B-4AS-05
$330.00 32 in stock
B3S-7WF-10-BI
$720.00 26 in stock
G3B-4AT-05
$330.00 23 in stock
B3S-7WA-10-BI
$720.00 21 in stock
G3S-5AA-01
$645.00 21 in stock
H3S-7WA-01
$770.00 21 in stock
G3B-4AA-01
$330.00 20 in stock
G3B-4AA-02
$330.00 20 in stock
G3B-4AA-05
$330.00 20 in stock
G3B-4AR-01
$330.00 19 in stock
H5A-6HL-75
$1,058.00 19 in stock
H5A-6HN-75
$1,058.00 19 in stock
H5A-6HP-25
$1,058.00 19 in stock
G3A-4AR-02
$262.00 18 in stock
G3A-4AR-05
$262.00 18 in stock
H5S-7WM-75
$2,410.00 14 in stock
B3A-6WF-05-BI
$337.00 13 in stock
B3S-7WA-05-BI
$720.00 13 in stock
G3S-5AR-01
$645.00 13 in stock
H3S-7WR-10-BI
$845.00 13 in stock
H5S-7HN-75
$1,972.00 13 in stock
H5A-6HP-50
$1,058.00 12 in stock
H5A-6HW-50
$1,058.00 12 in stock
H5A-6HL-88
$1,058.00 11 in stock
H5A-6HL-99
$1,058.00 11 in stock
H5B-6WM-88
$1,942.00 11 in stock
H5S-7HK-88
$1,972.00 11 in stock
H5S-7HP-50
$1,972.00 11 in stock
H5S-7HP-99
$1,972.00 11 in stock
H5S-7WM-88
$2,410.00 11 in stock
J3A-4AB-01
$729.00 11 in stock
J3A-4AS-02
$729.00 11 in stock
G3S-5AT-01
$645.00 9 in stock
H5A-6HK-50
$1,058.00 9 in stock
H5A-6HK-75
$1,058.00 9 in stock
H5A-6HK-75-RF
$1,303.00 6 in stock
H5A-6HM-75
$1,533.00 6 in stock
H5A-6HM-88
$1,533.00 6 in stock
H5A-6WM-88
$1,533.00 6 in stock
H5B-6WK-75
$1,598.00 5 in stock
H5B-6WL-88
$1,598.00 5 in stock
H5S-7WL-75
$1,972.00 5 in stock
J5A-6HL-88
$2,556.00 2 in stock
J5S-7HK-88-BI
$3,914.00 2 in stock
J5S-7HL-50
$3,669.00 2 in stock
J5S-7HL-88
$3,669.00 2 in stock
J5S-7HM-99
$4,331.00 2 in stock
J5S-7HN-25
$3,669.00 2 in stock
J5S-7HP-50
$3,669.00 2 in stock
J5S-7WM-99
$4,331.00 2 in stock
The manufacturer has over 100 different models of this product in stock. View All Manufacturer Stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Ships in 4-6 business days. Call for 24hr expedited option". Click here to select options
