Extech 382100 Power Analyzer / Data Logger

Name: Extech 382100 Power Analyzer / Data Logger
Price: 2389.0 USD
Availability: InStock

1200A 3-Phase Power Analyzer saves data to an SD card in Excel format for easy transfer to a PC for analysis.

$2,389.00 Found a better price? Let us match.

View Company Reviews

Part Number

382100

Manufactured

By Extech

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has 50 in stock.
This stock is typically available to ship in 3 - 5 working days.

Product Manual Product Specs

Features

ACV (True RMS): 600.0V range and ±(0.5%rdg+0.5V) accuracy
ACA: 1200A range and ±(0.5%rdg+0.5A) accuracy
Active Power (MW): 9.999MW range and ±(1.0%rdg+0.08KW) accuracy
Apparent power (MVA): 9.999MVA range and ±(1.0%rdg+0.08KVA) accuracy
Reactive power (MVAR): 9.999MVAR range and ±(1.0%rdg+0.08KVAR) accuracy
Power factor: 0.00 to 1.00 range and ±0.04 accuracy
Frequency range: 45Hz to 65Hz range and ±0.1Hz accuracy
-180° to +180.0° phase
Adjustable Current Transformer (CT) and Voltage Transformer (VT) ratio for high power distribution systems

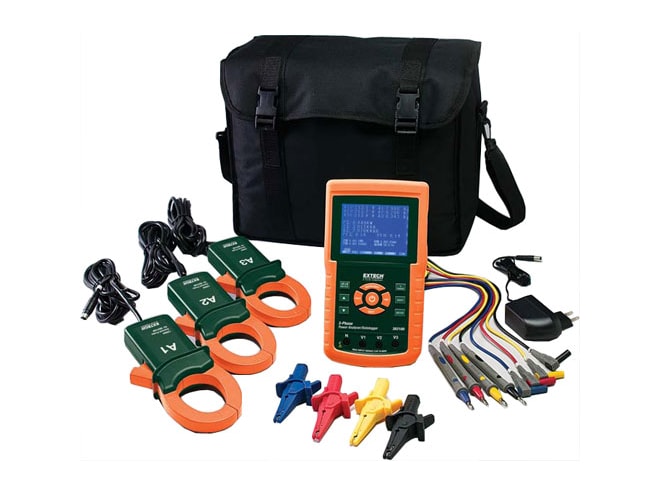

What's in the Box

3 current clamps
4 voltage leads with alligator clips
8 AA batteries
SD memory card
Universal AC adaptor (100 to 240V)
Case

The Extech 382100 power analyzer / data logger has a large dot-matrix, sun-readable, numerical backlit LCD. The meter is capable of a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground), A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system) and phase angle.

The Extech 382100 power analyzer / data logger features high accuracy autoranging current clamps (0.2A to 1200.0A) and a 600.0 VAC input with CAT III-600V safety rating. Adjustable current transformer (CT) and Voltage Transformer (VT) ratio are for high power distribution systems.

The Extech 382100 power analyzer / data logger logs up to 60,000 readings on a removable SD memory card in Microsoft Excel format and has a wide sampling rate range (2 seconds to 2 hours). Captured measurements can be imported directly into Excel via the SD memory card. The Extech 382100 power analyzer / data logger also has an easy-to-use onscreen menu and an easy-to-grab rugged over molded housing.
