Extech PM100/200 Fiber Optic Power Meter

Fiber optic power meters to measure power and loss, link certification and reporting.

Features

  • PM100
  • +3 to -52dBm
  • 0.1dB resolution
  • ±0.2dB accuracy
  • Multimode/Single Mode
  • PM200
  • +5 to -60dBm
  • 0.01dB resolution
  • ±0.15dB accuracy
  • Multimode/Single Mode
  • Data Storage
  • Software and serial cable included
  • Nist certificate included

Extech PM100 Fiber Optic Power Meter

The Extech PM100 fiber optic power meter features a 65dB dynamic range and a choice of silicon or germanium photodetector. The PM100-S has a 1mm silicon photodetector with 2.5mm universal adaptor (ST, SC and FC) and supports multimode operation. The PM100-G optic power meter has a 1mm germanium photodetector with 2.5mm universal adaptor (ST, SC and FC) and supports single mode and multimode operation. Both models of the Extech PM100 fiber optic power meter have a single push button zero reference and a 7-segment LED display of power in dB and dBm with an expected 250 hours of battery life.

The Extech PM100 fiber optic power meter ships complete with NIST certificate 9V battery and protective rubber holster.

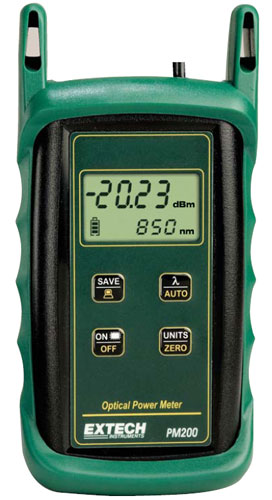

Extech PM200 Fiber Optic Power Meter

The Extech PM200 fiber optic power meter has a 65dB dynamic range and is capable of both single mode and multimode operation with its 1mm germanium photodetector with 2.5mm universal adaptor (ST, SC and FC). Other features of the Extech PM200 fiber optic power meter include simple four button operation and a large easy to read backlit LCD display. The Extech PM200 fiber optic power meter stores up to 100 data points.

The Extech PM200 fiber optic power meter also has serial port and Reporter ™ data management and reporting software. The software based Loss Wizard ™ is used to manipulate data. Wizard ™.

The Extech PM200 fiber optic power meter ships complete with NIST certificate, Windows ® 95/98/NT/2000, ME/XP compatible software, serial cable, 9V battery and protective rubber holster.
