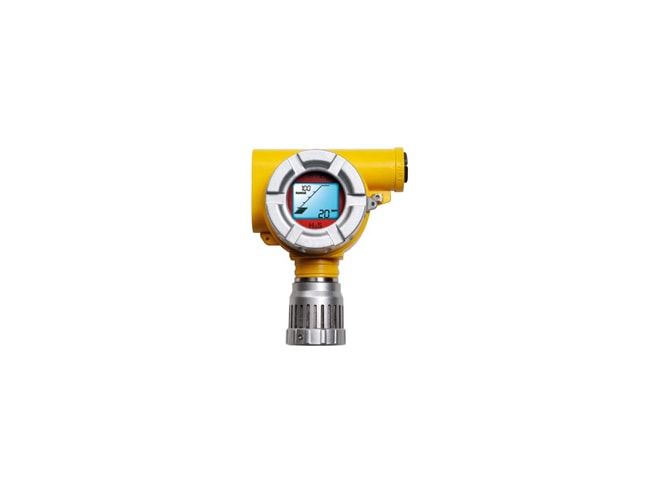

Honeywell Sensepoint Pro Fixed Gas Sensor

Comprehensive monitoring of flammable, toxic and oxygen gas hazards in potentially explosive atmospheres.

Honeywell Sensepoint Pro Fixed Gas Sensor
Honeywell Sensepoint Pro Fixed Gas Sensor
Honeywell Sensepoint Pro Fixed Gas Sensor

Retired products cannot be ordered

The Honeywell Sensepoint XCD is the recommended replacement

View Company Reviews

Manufactured

By Honeywell

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Features

Gases Detected: Methane, Oxygen, Carbon Monoxide, Hydrogen Sulfide, Hydrogen
Ranges: 0-100% LEL (Methane), 0-25% VOL (Oxygen), 0-200ppm, 0-500ppm (Carbon Monoxide), 0-20ppm, 0-50ppm, 0-100ppm (Hydrogen Sulfide), 0-1,000 (Hydrogen)
Operating Temperatures: -20°C to 50°C (-4°F to 122°F) (Methane, Carbon Monoxide, Hydrogen Sulfide), -15°C to 40°C (5°F to 104°F) (Oxygen, Hydrogen)
Alarm Relays: 2 x 3A @ 240 VAC
IP65 as standard in accordance with EN60529:1992
Operating Pressure: 90-110kPA

The Honeywell Sensepoint Pro fixed gas sensor provides comprehensive monitoring of flammable, toxic and oxygen gas hazards in potentially explosive atmospheres, both in and out of doors. Users can modify detector operation using the remote control provided without ever needing to open the unit. This enables one man, non-intrusive, operation and reduces routine maintenance time and costs.

All detectors are supplied pre-configured and include two programmable alarm relays as well as an industry standard 4-20mA output. The scale, range, calibration, relay operation and alarm set points of the detector may all be adjusted via the transmitters' backlit LCD and an intrinsically safe remote control that is also suitable for use in potentially explosive atmospheres. Outputs are automatically inhibited during adjustment thereby reducing the risk of false alarm at the control panel during maintenance.

Sensepoint Pro is supplied with all necessary accessories for easy installation. The detector can be mounted on a wall or round support pole using the universal bracket provided. The detector is ideal for use with either conduit or steel wire armored cable and glands. A 3/4"NPT entry and M20 adapter are included as standard. A weatherproof cap is also included for use in the harshest outdoor conditions.
