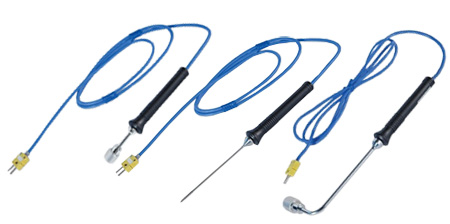

Yokogawa Temperature (Thermocouple) Probes

Type-K thermocouples for Yokogawa precision thermometers.

Yokogawa type-K thermocouple probes are available in a number of styles suitable for a wide range of applications. These probes have a wide measuring range with outstanding accuracy and response time. Yokogawa thermocouples are constructed of high quality 316 stainless steel and include a 1.2 meter cord.

Models

Model Style Range Sensor Length Sensor Diameter Response Time Accuracy
90020 Rounded end -50 to 600°C 200mm 3.2mm 1.4 sec 0.4% or ±1.5°C
90021 Rounded end -50 to 600°C 150mm 1.6mm 0.4 sec 0.4% or ±1.5°C
90022 Rounded end -50 to 600°C 500mm 3.2mm 1.4 sec 0.4% or ±1.5°C
90023 Needle -50 to 500°C 100mm 1.6mm 0.4 sec 0.4% or ±1.5°C
90024 Needle -50 to 500°C 100mm 2.1mm 1 sec 0.4% or ±1.5°C
90030 Surface (straight) -20 to 250°C N/A 15mm 2 sec 0.75% or ±2.5°C
90031 Surface (angled) -20 to 250°C N/A 15mm 2 sec 0.75% or ±2.5°C
90032 Surface (straight) -20 to 500°C N/A 15mm 2 sec 0.75% or ±2.5°C
90033 Surface (angled) -20 to 500°C N/A 15mm 2 sec 0.75% or ±2.5°C
