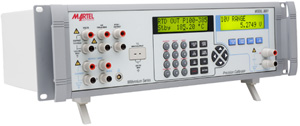

The benchtop Martel 3001 multi-function calibrator is a highly accurate, full-featured temperature,
pressure, and DC calibrator intended for R & D, manufacturing, and calibration lab applications. The
Martel 3001 multi-function calibrator's simple design and ease of operation allow users to quickly
familiarize themselves with its operations and features. Time saving functions like the ability to
save, recall and automatically cycle through setpoints for each output range, the ability to enter
user definable RTD curves, and a complete remote interface are several key features offered by the
Martel 3001 multi-function calibrator.
The precision Martel 3001 multi-function calibrator provides users a simple, intuitive interface. Mode,
range, and value can be entered using either the front-panel keyboard with the cursor. All operating
functions of the Martel 3001 multi-function calibrator can also can be accessed remotely via RS-232,
IEEE-488, or USB using a standard PC running Fluke Met/Cal ® software, Windows ® HyperTerminal or other
software using an ASCII protocol.
In addition to its wide range of functions, the Martel 3001 multi-function calibrator has a number of
features that sets it apart from other multifunction calibrators. Flexible output is achieved through
five-way copper alloy binding posts which provide a wide range of connection options. Stability and
accuracy is traceable to NIST standards. Manual zero calibrations can be made on all T/C and pressure
functions to eliminate offsets. The Martel 3001 multi-function calibrator also allows up to nine setpoints
to be defined for each output mode and each thermocouple and RTD type.
The Martel 3001 multi-function calibrator also features a fully isolated measurement channel which allows
the user to calibrate process transmitters and signal isolators. In reality it's like having two instruments
in one. This channel also incorporates a 24 volt loop power supply to power 2-wire transmitters and a HART
interface resistor enabling direct connection to HART communicators.
Voltage Mode
The Martel 3001 multi-function calibrator offers four precision voltage output ranges (100mV, 1V, 10V, and
100V) all with 0.003% (30ppm) accuracy. These ranges are ideal for calibrating a broad range of DC voltage
instrumentation. Additionally all voltage outputs settle to full specification in less than 200ms making the
Martel 3001 multi-function calibrator ideal for automated calibration systems. An automatic stand-by mode
assures that output voltages above 30VDC must be acknowledged by the operator before the voltage appears at
the output jacks. The Martel 3001 multi-function calibrator's stand-by mode is also triggered if the output
current compliance is exceeded, thereby protecting the device under calibration.
Current Mode
The Martel 3001 multi-function calibrator features a precision current output range (100mA) that offers 0.01%
(100ppm) accuracy, which is ideal for calibrating process instrumentation especially 4 to 20mA equipment. With
a full 12 volts of compliance at 100mA virtually any precision DC current measuring device can be calibrated
using the 3001. Like the voltage ranges, the current range offers quick settling time and an operate/stand-by
mode.
Thermocouple Mode
The Martel 3001 multi-function calibrator can read and source any of 11 types of thermocouples. Its T/C input
and output is Cold Junction Compensated, using an ultra-stable PT-1000 sensor.
RTD Mode
The Martel 3001 multi-function calibrator can read and source 9 RTD types as well as YSI-400 and Ohms for
non-standard curves. Probe coefficients (A, B, C, and R0) can be entered directly, with storage for up to five
custom curves and one SPRT curve. The performance of the Martel 3001 multi-function calibrator in the RTD mode
compares to dedicated RTD measurement instruments. Unlike low-cost, less accurate RTD instruments, the Martel
3001 multi-function calibrator's display is always active, reading to three decimal places, using polynomial
averaging to extract a high accuracy signal. The result is a very quiet, high accuracy reading.
Pressure Mode
The Martel 3001 multi-function calibrator operates with all Martel BetaPort series pressure modules using the
BPPA module adapter and covers pressure ranges from 0 to 10" H2O to 10,000 psi. Pressure can be displayed in a
wide range of engineering units with up to 0.025% Full Scale accuracy.
