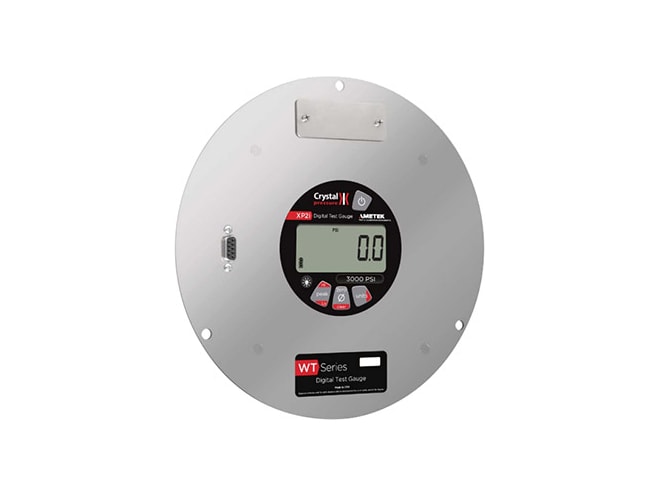

Ametek Crystal WT Series Pressure Gauge

Name: Ametek Crystal WT Series Pressure Gauge
Price: 1956.0 USD
Availability: BackOrder

Precision test gauge designed for panel-mounted applications, designed to fit in 8 or 10 inch panel mount applications.

Starting at $1,956.00

View Company Reviews

Manufactured

By Crystal Engineering

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs (3 Files)

Features

Replacement for most common portable test gauges
Designed to fit in 8 or 10in panel mount applications
Easy front access to the serial port & battery cover
Not rated intrinsically safe
Available in PSI, bar or Pa
Temperature range: -10 to 50°C
0.1% accuracy
1/4in NPT or BSP pressure connection

The Ametek Crystal Engineering WT Series is a combination of leading edge technology and rugged industrial design. The WT Series Digital Test Gauge is designed to fit in 8 or 10 inch panel mount applications commonly found in portable test sets. The WT Series pressure gauge has been repackaged so that it may be mounted in a portable enclosure, while retaining easy access to batteries and to the digital (RS-232) interface (both of which would otherwise be on the back of the gauge).

The WT Series case is made from rugged aluminum alloy utilizing a gasket to seal the enclosure against dust and water intrusion. Even the RS-232 connector is fully sealed (with or without the red cover or rubber boot). Circuitry is mounted in shock absorbing elastomer supports and the batteries are easily accessible by removing four screws. But you won't need to change the batteries often, since 3 AAA batteries provide up to 500 hours of continuous operation. The batteries are easily replaced by removing the two screws.
