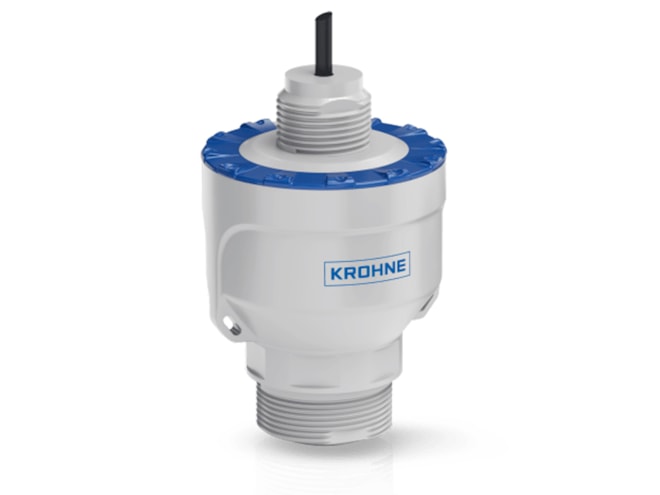

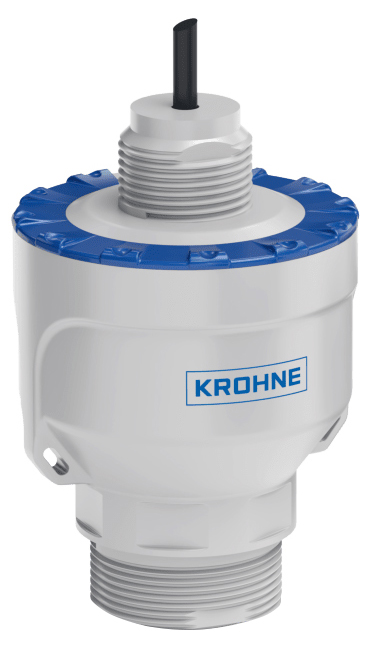

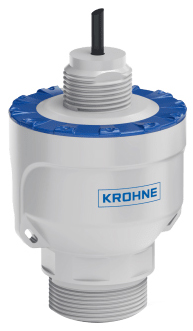

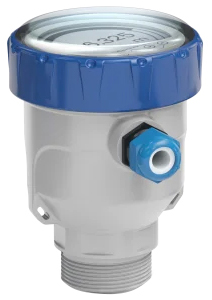

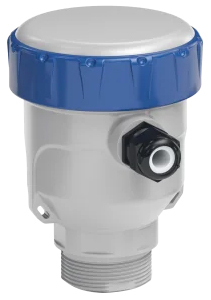

KROHNE Optiwave 1500 Series Radar Level Transmitter

Name: KROHNE Optiwave 1500 Series Radar Level Transmitter
Price: 717.0 USD
Availability: InStock

2-wire 80 GHz radar level transmitter for basic or high precision applications.

Starting at $717.00

View Company Reviews

Manufactured

By KROHNE

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

2-wire device
4-20mA and HART 7 output
PVDF housing
Small dead zone and 8° beam angle
80GHz FMCW radar

The OPTIWAVE 1500 series is a range of reasonably priced non-contact level transmitters that use FMCW radar technology. The device housing and antenna are made of PVDF, which is compatible with almost all common products. They can operate at temperatures from -25 to +80°C / -13 to +176° and pressures from -1 to 5 bar / -14.5 to 75.2 psi. Operating in a frequency range around 80 GHz and with a frequency sweep of 4 GHz, these devices can measure with a high signal resolution. They comply with NAMUR Recommendation NE 107 for status and error handling and enhanced diagnostic functions are available using either the OPTICHECK Level Mobile app or a DTM for PACTware that are both supplied free of charge.

Applications

Water and wastewater
Chemical market
Metals, minerals and mining
Food and beverage

Part Number	Model	Cable Length	Price	Available
VFDM4034120000110 Show Full Configuration	1540 (15m measuring range, ±2mm accuracy)	5m (2-wire)	$878.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
