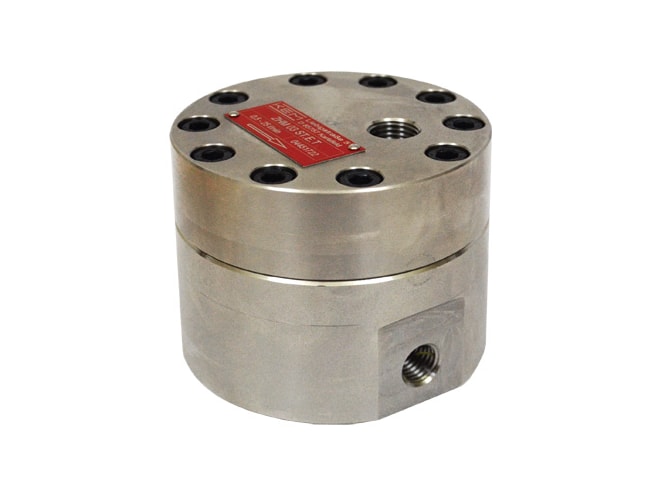

AW Gear Meters ZHM Series Positive Displacement Flow Meter
Select options for pricing

Not in stock. Usually ships in 2-3 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Accuracy ±0.5% of reading
  • Pressure rating up to 9000 PSI
  • Great for multi-viscosity fluids
  • 304 SS or 316Ti bodies
  • Long operating life

The ZHM Series Positive Displacement Flow Meter from AW Gear Meters is ideally suited for higher pressures and multi-viscosity fluid measurement. Manufactured of stainless steel and tungsten carbide, the ZHM Series Positive Displacement Flow Meter can be used with abrasive fluids as well as those fluids under high pressure. The AW Gear Meters ZHM Series Positive Displacement Flow Meter carries a maximum pressure rating of 9,000 PSI.

The AW Gear Meters ZHM Series Positive Displacement Flow Meter measures a small volume of liquid as each gear tooth passes the sensor. The uncompromised manufacturing tolerance prevents slippage of fluid even at the lowest flow while the flow meter's robust design ensures a long operating life.

A wide range of flow sensors and display options are available with the AW Gear Meters ZHM Series Positive Displacement Flow Meter, including quadrature sensors and meter-mounted digital displays.

Specifications of the AW Gear Meters ZHM Series Positive Displacement Flow Meter

Body:
Stainless Steel
Gear:
Stainless Steel
O-Ring:
Teflon/Viton®
Bearings:
Tungsten Carbide
Repeatablility:
±0.5% of actual reading
Temperature:
Max 180°C / 350°F

Viton® is a registered trademark of DuPont Performance Elastomers
