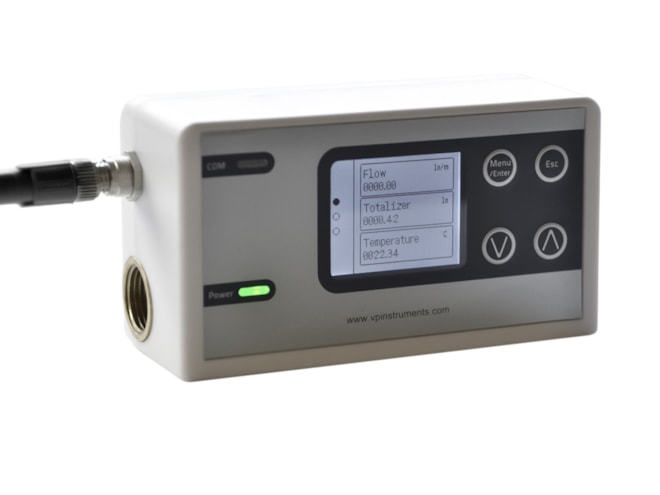

VPInstruments VPFlowScope In-line 3/8in Flow Meter

Name: VPInstruments VPFlowScope In-line 3/8in Flow Meter
Price: 1179.0 USD
Availability: BackOrder

Inline thermal mass flow meter for air and oxygen with a max flow up to 1.77 SCFM.

$1,179.00

Effective April 29th, 2025, VPInstruments has added a 10% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Part Number

VPS.R003.M038.D10

Manufactured

By VPInstruments

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Measurements: flow, total flow, temperature
Flow range: 0.09 to 1.77scfm (2.15 to 50l/min)
Gases: oxygen and compressed air
Gas temperature range: 20 to 32°C (68 to 89.6°F)
Accuracy: 5% of full scale
Pressure rating: 0 to 150psig (0 to 10bar)
Diameter: 0.375in
LED indicators for power/communication status
Inbuilt display with real-time data and configuration keys
Output: RS485 (Modbus RTU) and 4 to 20mA
Electrical connection: M8 5-pin female connector
Certifications:
- IP54 (NEMA 3), EN 60950-1, EN 61326-1, EN 61000-3-2/3

The VPInstruments VPFlowScope In-line 3/8in Flow Meter is designed for the measurement of low flows of dry, clean compressed air and oxygen at point of use, with a max flow rate up to 1.77scfm. Patented Thermabridge technology allows for simultaneous monitoring of flow, total flow and temperature. The inbuilt display shows the actual and total flow, with Modbus and analog 4 to 20mA outputs which allow the unit to interface with products integrating VPInstruments' VPVision software, or other monitoring systems. Avoid use in direct sunlight or environments that involve radiant heat, or are highly corrosive.

Applications:

Point of use in compressed air systems
Output of oxygen generators
Consumption measurement
Leakage measurement
Cost allocation and measuring distribution network

Spec Sheets

VPInstruments VPFlowScope In-line 3/8in Flow Meter Datasheet (386 KB)

Manuals

VPInstruments VPFlowScope In-line 3/8in Flow Meter Manual (464 KB)
