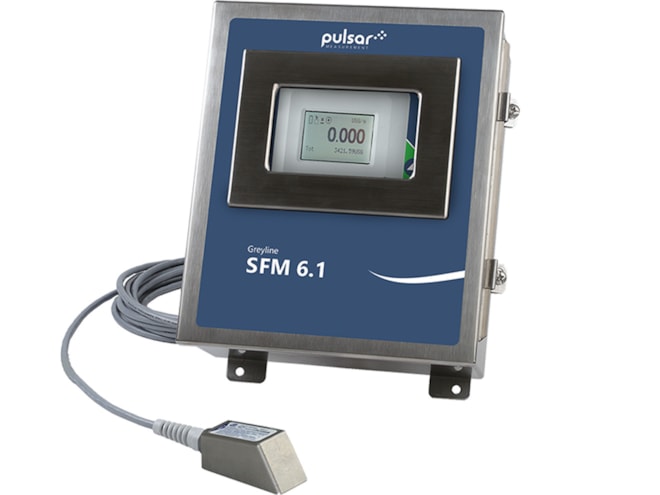

Greyline Instruments SFM 6.1 Doppler Slurry Flow Meter

Name: Greyline Instruments SFM 6.1 Doppler Slurry Flow Meter
Price: 4635.0 USD
Availability: BackOrder

Non-contact ultrasonic meter accurately displays, transmits, totalizes and controls flow from outside the pipe.

Starting at $4,635.00

View Company Reviews

Manufactured

By Pulsar Measurement, Trading Name of Greyline

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs (2 Files)

Features

Rugged NEMA4 stainless steel enclosure with window to read
Flow rate: ±0.1 to 40 ft/sec (±0.03 to 12.2 m/sec)
Pipe size: 1/2 in to 15ft (12.7mm to 4.6m)
Accuracy ±2%:
- Requires solids or bubbles of at least 100 microns
- 75ppm concentration
±0.1%, Linearity ±0.5% of full scale repeatability
Large, backlit LCD display
16-Digit totalizer
Reverse flow measurement
Simple 5-key calibration
Password protected
Isolated 4-20mA (1000 ohm load max)
2 programmable control relays
128 MB Data Logger
4-20mA/0-5 V output
MODBUS RTU

The Greyline Instruments SFM 6.1 Doppler Slurry Flow Meter is a specially designed Slurry Flow Meter designed for industrial and dredging flow applications. This non-contacting ultrasonic doppler flow meter is specifically designed for limestone slurry, fly ash slurry, gypsum slurry, and many others. The non-contacting ultrasonic sensor simply clamps to the outside of a wide variety of pipe materials and sends an ultrasonic signal into the pipe, measuring acoustic reflections off solids and gas bubbles that are suspended in the slurry.

With no need to shut down flow or interrupt processes, industrial and dredging operators can keep sites running to capacity and ensure that maximum flow rates are being reached. Configuration for this clamp on flow meter is easy with the user-friendly menu system and 26 million point data logger that allows operators to see flow charts and create dynamic reports on their process.

The SFM 6.1 Slurry Flow Meter can measure flow in either direction and gives a display of positive or negative values on the meter's backlit, matrix display. The totalizer can be controlled to subtract reverse flow or to totalize forward flow only, and the 4-20mA output can be adjusted to a negative flow setting.
