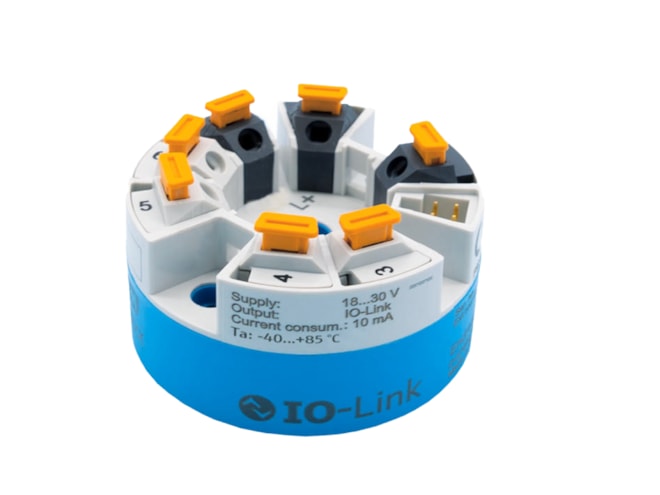

E+H iTEMP TMT36 Head Mount Temperature Transmitter

Single-channel IO-Link transmitter with form B connection head. Compatible with 2-, 3-, and 4-wire RTD sensors. Configurable with E+H TID10 Transmitter Display Head.

Starting at $210.87
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Input: 1 x RTD (2-,3-,4-wire)
  • Output: IO-Link
    • 1 x PNP, NPN or push-pull switch output (configurable)
  • Accuracy: Pt100, -50 to 200°C ( -58 to 392°F) <= 0.15K
  • Ambient temperature range: –40 to 85°C (–40 to 185°F)
  • Sensor-transmitter matching via Callendar-van Dusen equation
  • Auxiliary power supply: 18 to 30V DC
  • Installation: Terminal head form B or on DIN rail with clip
  • Optional E+H TID10 Transmitter Display Head
  • Screw/push-in terminals
  • NAMUR NE107 diagnostics
  • IP 20
  • Vibration resistance: IEC 60068-2-6/27
  • CSA General Purpose certification
  • Extended 5-year warranty, please contact an engineer for details

The E+H iTEMP TMT36 Head Mount Temperature Transmitter records and converts RTD sensor input signals in industrial level temperature measurement applications. This single-channel IO-Link unit utilizes the Callendar-van Dusen equation in its sensor-transmitter matching, increasing the accuracy of measured values when transmitted between the sensor and device. The TMT36 also integrates all standard diagnostic functions, such as overrange/underrange detection, low voltage detection, internal device errors, simulation and overload at switch output alarms.

The form B connection head allows installation on all modular E+H thermometers, bringing digital transmission services to a wide range of industries. Push-in terminals are available for tool-free installation and easy access during maintenance. The unit can be configured with an optional transmitter display head (TID10).

E+H TID10 Transmitter Display Head
E+H TID10 Transmitter Display Head

Plug-in transmitter head with dot-matrix measured value display for use with E+H TMT Series Temperature Transmitters.

Starting at $121.03

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Price Available
TMT36-CAA1A1ACA1
Show Configuration
$210.87 8 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
