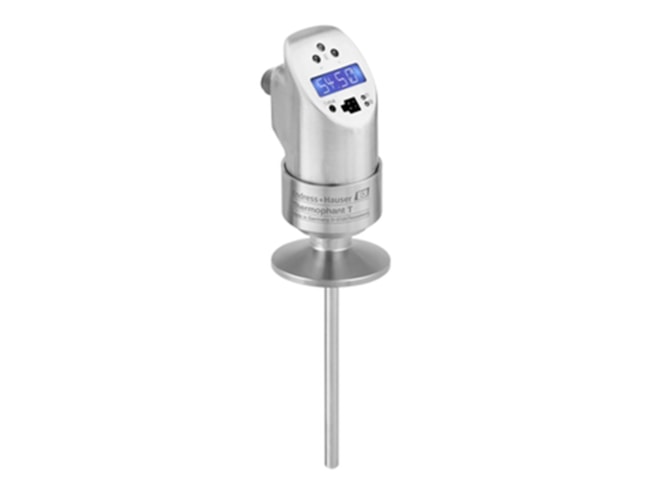

E+H Thermophant T TTR35 Temperature Switch

Name: E+H Thermophant T TTR35 Temperature Switch
Price: 494.44 USD
Availability: BackOrder

Compact, smart sensor monitoring of process temperatures from -50 up to 200°C. Up to 2 switch outputs, or 1 switch and 1 analog. 3-A and EHEDG approvals.

Starting at $494.44

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-4 weeks

Product Manual Product Specs

Features

Measuring principle: temperature switch
- Pt100 class A as per IEC 60751
Output(s):
- 1 x PNP switch
- 2 x PNP switch
- 1 x PNP switch / 1 X 4 to 20mA
Operating temperature range: -50 to 150°C (-58 to 302°F)
Accuracy:
- -50 to 75°C: <0.5K (-58 to 167°F: <0.9°F)
- 75 to 150°C: <0.65K (167 to 302°F: <1.2°F)
Long term drift: <0.1K/a (<0.2°F)
Hygienic process connection(s):
- Conical metal-metal G½"
- Clamp 1" - 1½", 2"
- Varivent F, N
- DIN 11851
- APV Inline
Auxiliary power supply: 12 to 30V DC
Approvals: 3-A, EHEDG, DESINA

The E+H Thermophant T TTR35 Temperature Switch provides a compact, reliable process temperature measurement medium at economic pricing. The design has 3-A and EHEDG approval, suited for the food, beverage and life sciences industries. Configurable with up to two PNP switch outputs, or one PNP switch and one analog 4 to 20mA output. The numerous hygienic process connections available with the TTR35 make the unit highly adaptable to various applications and installation points. The durable aluminum construction of the Pt100 class A temperature sensor means long term reliability and less service life costs accrued from maintenance.

The digital display and operation menu allow for easy reading and control of process monitoring on-site, for temperature ranges from -50 (-58°F) up to 200°C (392°F), depending on the configuration. Ready access to operation controls and display is furthered with the 310° rotation capability of the top housing section. The TTR35 data can be connected to a PC with access to E+H's FieldCare or ReadWin 2000¹ software package for further operation and data visualization possibilities.
