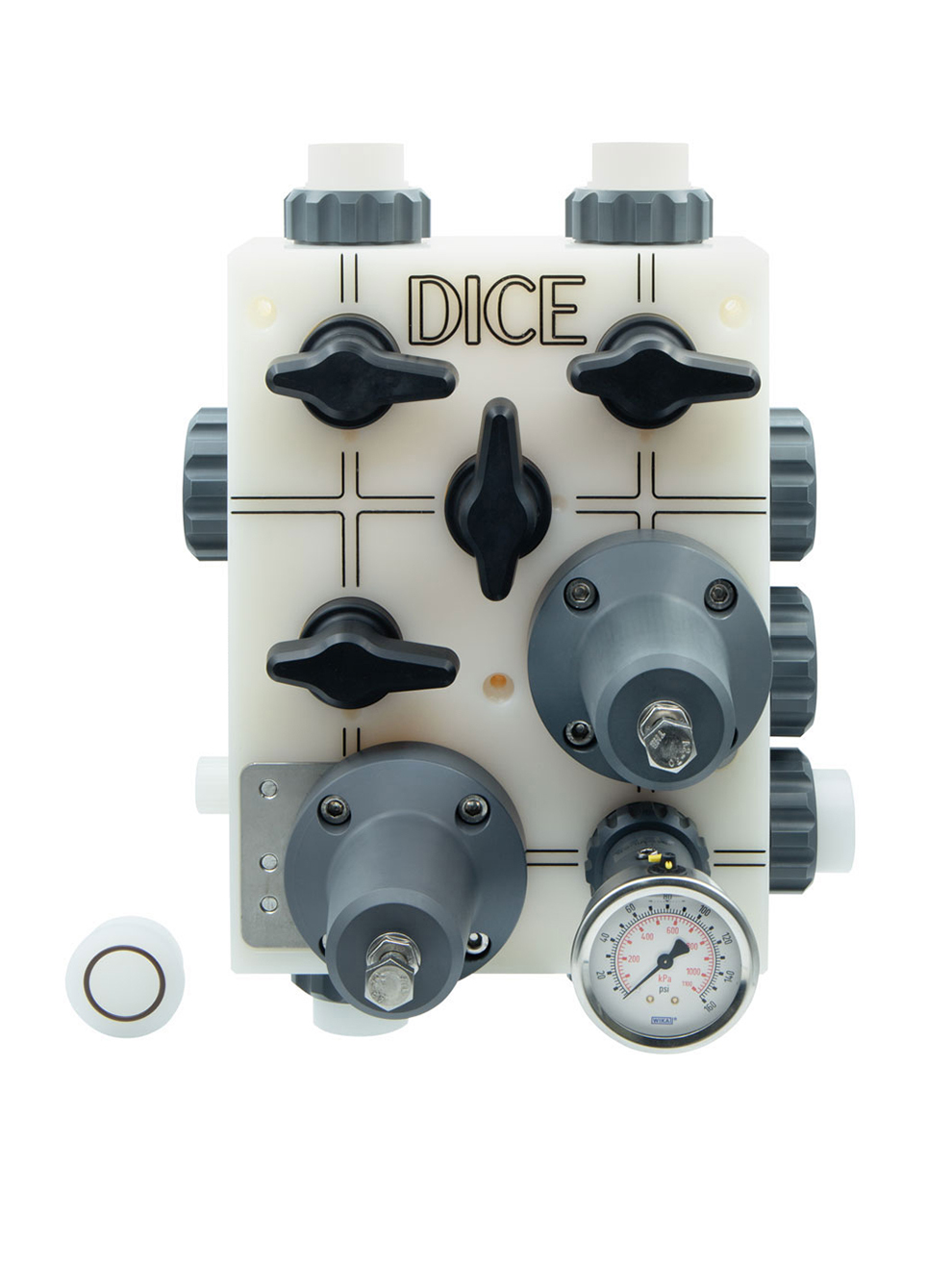

Meunier Technologies DICE Dosing Module

Compact, machined block integrating all essential components for a high accuracy dosing system. Suction lift and flooded suction configurations.

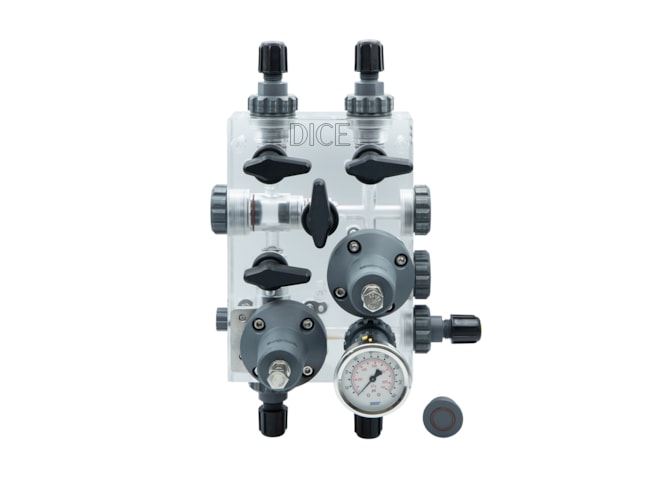

Meunier Technologies DICE Dosing Module DM 1/2in - Acrylic
Meunier Technologies DICE Dosing Module DM 1/2in - PVDF
Meunier Technologies DICE Dosing Module DM 1in - Acrylic
Meunier Technologies DICE Dosing Module DM 1in - PVDF
Meunier Technologies DICE Dosing Module DS 1/2in - Acrylic
Meunier Technologies DICE Dosing Module DS 1/2in - PVDF
DICE Dosing Module DS/DM Installation Walkthrough

Images may not represent all possible configurations of this product.

Starting at $3,240.00

View Company Reviews

Manufactured

By Meunier Technologies

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Specs (2 Files)

Features

Suction lift
- includes flood suction for DM modules
Shipped fully assembled
FAT testing
Material configuration options:
- Acrylic, PVC, FKM/Viton
- Acrylic, PVC, EPDM
- PVDF, PVDF, FKM/Viton
- PVDF, PVDF, EPDM
- Other materials available upon request
Number of connections: 8 with DS, 9 with DM
Flow:
- DS/DM 1/2in:
  - ≤ 60LPH (16GPH) Simplex
  - ≤ 30LPH (8GPH) Duplex
- DM 1in:
  - ≤ 1000 LPH (265 GPH) Simplex
  - ≤ 500 LPH (132 GPH) Duplex
Pressure range: 0-150psi
Integrated components:
- Inlet/outlet ball valves
- Calibration column ball valve
- Drainage ball valve
- Auxiliary ports:
  - Pulsation dampeners/washing port/dilution water/secondary pumps
- Adjustable back pressure valve
- Adjustable pressure relief valve
- Pressure gauge with isolator
- Bleed valve
Additional cap for simplex/duplex configurations
The DICE Module is packaged in a 13x11x11in cardboard box

The Meunier Technologies DICE Dosing Module is part of a series of innovative chemical dosing products that integrate all the necessary components for a typical chemical dosing system into a single compact design. These patented modules are a new approach to chemical dosing systems, significantly reducing the footprint required while increasing reliability and ease of installation.

The DICE Dosing Module features an extensive set of integrated components including inlet/outlet ball valves, calibration column ball valve, drainage ball valve, auxiliary ports for pulsation dampeners/dilution water/washing port/secondary pumps, an adjustable back pressure valve, adjustable pressure relief valve, pressure gauge with isolator, and bleed valve. All of these components are consolidated into one machined block, greatly reducing potential leak points in comparison with conventional piped systems.

This series is designed for suction lift installations or flooded suction configurations (DM only), by connecting the pump's discharge directly back to the chemical tank. Their compact, rigid design allows easy installation on new or existing systems using just 3 supporting bolts and 4 connections. A variety of construction materials are offered for high chemical resistance, such as Acrylic, PVC, PVDF, FKM/Viton and EPDM(CVPC is available upon request). Reduced connections, vibrations, and integrated hydrotesting allow the DICE Dosing Module to provide a reliable, low-maintenance solution with a much smaller footprint than traditional configurations.
