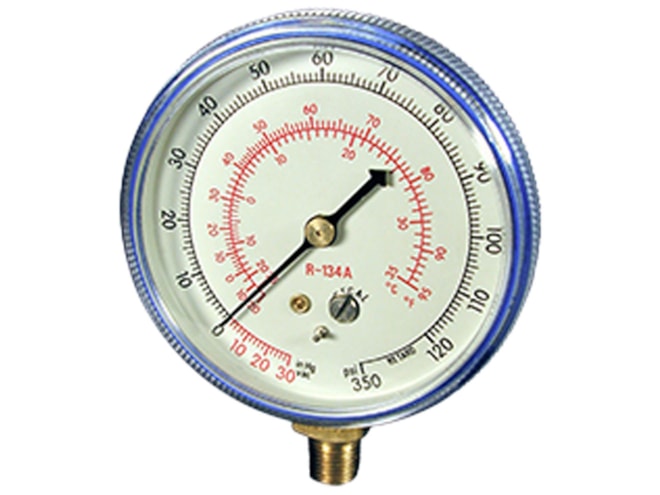

US Gauge Model 1785 Manifold Pressure Test Gauge

Name: US Gauge Model 1785 Manifold Pressure Test Gauge
Price: 29.15 USD
Availability: BackOrder

Manifold pressure test gauge for use with various types of refrigerants.

Starting at $29.15

Effective April 15th, 2025 US Gauge has added a 82% surcharge for this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By US Gauge

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Specs

Features

2-1/2in size
P-1785 – 0-500 psi, 0-800 psi
CR-1785 – 30" Hg VAC, 0-120 psi retarded to 350 psi; 30" Hg VAC, 0-250 psi retarded to 500 psi
±3-2-3% Accuracy, applicable to non-retard portion
Phosphor bronze bourdon tube
Threaded polycarbonate window and ring
Steel dial with white background and black markings; refrigerant temperature scale in red
Aluminum, black finish pointer
1/8-27 NPT, LM, brass connection

The Model 1785 manifold pressure test gauge offers several ranges for use with various types of refrigerants, including R-12, R-22, R-502, R-134A and R-410A. The gauges can be permanently mounted in cooling systems or used on portable manifolds. Type CR-1780 is supplied with 350 psi retard scale to accommodate accidental over-pressure. All gauges feature a one piece polycarbonate ring and window. This provides quick, easy access to internal front adjusting screw for resetting the pointer.
