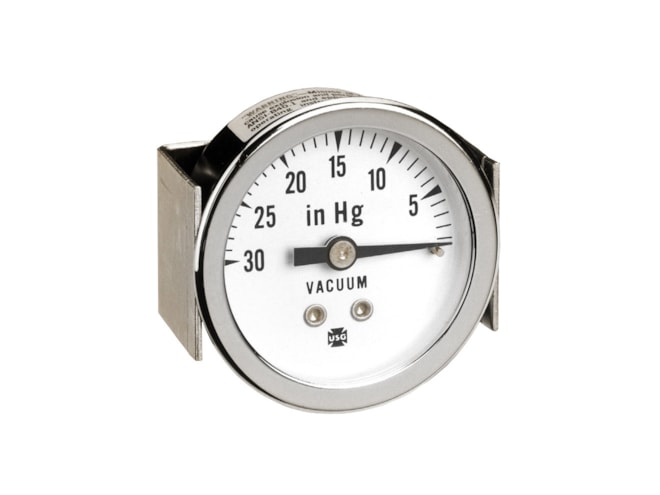

US Gauge Model 562 Mini Panel Mount Pressure Gauge

Name: US Gauge Model 562 Mini Panel Mount Pressure Gauge
Price: 98.84 USD
Availability: BackOrder

Miniature panel mount pressure gauge designed to conserve space.

Starting at $98.84

Effective April 15th, 2025 US Gauge has added a 82% surcharge for this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By US Gauge

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Specs

Features

Accuracy: ±(3-2-3% FS)
Available size: 1½
Whetted parts: phosphor bronze, bourdon tube, and brass
Pressure Ranges: 0-15 through 0-300 psi
Connection: brass, center-back 1/8-27 NPT

The Model 562 Miniature panel mount pressure gauge is designed to conserve space on any type of equipment where space is limited. The 1½” gauge has mounting studs coming out of the back of the case, and a U-Clamp to secure the gauge in the panel. The front ring is chrome plated with a scratch resistant polycarbonate window.

Model 562 pressure gauges comes standard in 11 different vacuum pressure to gauge pressure ranges, up to 2000 psi. It has a 1/8” NPT brass connection, and meets ASME B40.100 Grade B accuracy (±3-2-3%). They are available off the shelf or customized for OEM applications.
