US Gauge Model 1929 SOLFRUNT Low Pressure Gauge

4.5in dry case, low mount, stainless steel pressure gauge with ranges from 30inH2O VAC through 10psi. 1/2 and 1/4in NPT connections available.

Starting at $1,287.50

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Specs

Features

  • Accuracy: ± 1%
  • Dial diameter: 4.5in
  • Process connection: 1/4 or 1/2in NPT, low mount
  • Range(s): 30inH2O vacuum through 10psi
  • Materials:
    • window: high temperature acrylic
    • case: polyethylene terephthalate (PET) (dry)
    • movement: heavy brass U-frame with nickel-silver rocker arm on stainless steel pivots
    • wetted parts, diaphragm, connection: 316 Stainless Steel
  • Metric and dual scale dial options available upon request

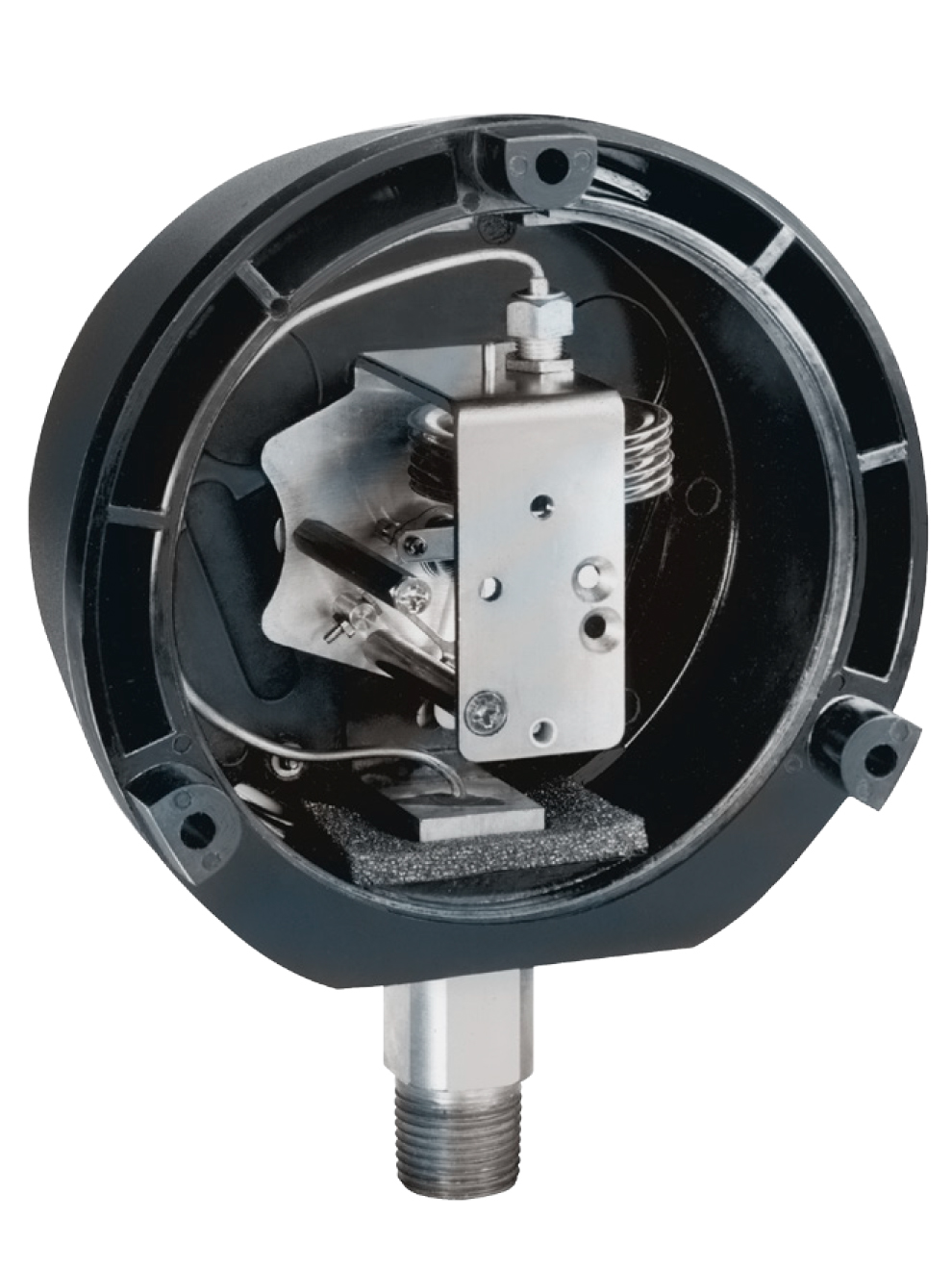

The US Gauge Model 1929 SOLFRUNT Low Pressure Gauge features high sensitivity for low pressure measurements in spans from 30inH2O to 10psi, utilizing nested diaphragm capsules so that the mechanism is triggered at the smallest change in volume. These readings are accurate within 1% of span, providing reliable data consistently. Calibration adjustments to the Model 1929 are easily made via the back of the case, and pointer adjustments through quick removal of the front ring and window. A 4.5in standard dial size, this gauge comes with 1/4 or 1/2in NPT stainless steel, low mount connections. The Model 1929 provides measurement in standard units of inH2O or psi, with metric versions available upon request.

For use with corrosive or viscous fluids, the Model 1929's measuring element can be connected to a Mansfield & Green diaphragm seal (Type L).
