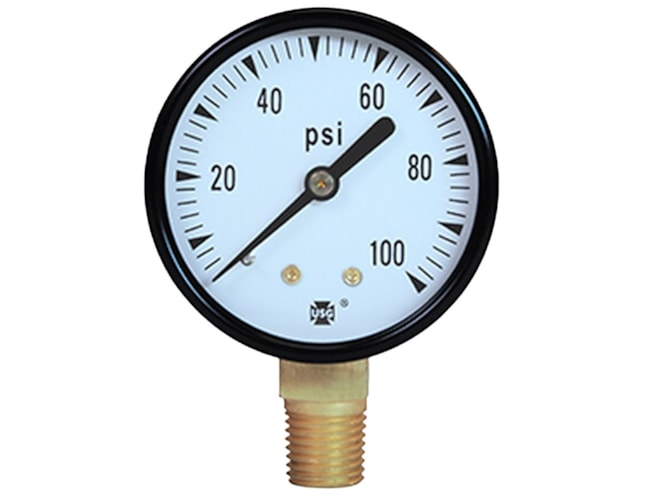

US Gauge Model 500 General Purpose Pressure Gauge

Name: US Gauge Model 500 General Purpose Pressure Gauge
Price: 21.4 USD
Availability: BackOrder

Commercial gauge measuring vacuum pressure, gauge pressure, or compound gauge pressure.

Starting at $21.40

Effective April 15th, 2025 US Gauge has added a 82% surcharge for this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By US Gauge

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Specs

Features

Accuracy: ±(3-2-3% FS)
Available sizes: 1½", 2", 2½", 3½", or 4½"
Whetted parts: phosphor bronze, beryllium copper, and brass
Ranges:
- Vacuum - 30 to 0 "Hg VAC (counterclockwise rotation)
- Compound - 30"Hg VAC to 300 psi
- Pressure - 0 to 5000 psi
Connection: center-back or low mount; 1/8-27 NPT for 1-1/2" and 2"; 1/4-18 NPT for 2" through 4-1/2"

The Model P500 Low Lead Pressure Gauge is a low lead version of our popular P500 product line. These gauges adhere to the federal lead-free plumbing bill enacted by the US Congress “Reduction of Lead in Drinking Water Act” in January 2014.

All gauge sizes meet ASME B40.100 Grade B accuracy (±3-2-3%). Pressure ranges are from 0 to 15 psi through 0 to 300 psi. These pressure gauges are available in low mount or center back connections.
