Michell Instruments SAM Compact Sampling System

Name: Michell Instruments SAM Compact Sampling System
Price: 4319.34 USD
Availability: BackOrder

Modular dew point and moisture content sampling system with fully interchangeable components for use with Michell Instruments Transmitters and Hygrometers.

Starting at $4,319.34

View Company Reviews

Manufactured

By Michell Instruments

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 4-6 weeks

Product Specs

Features

Dew point measurement range:
- min: -166°F (-110°C)
- max: 68°F (20°C)
Accuracy (dew point):
- ±3.6 to ±2.8°F (±1 to ±2 °C)
Supply voltage: 24 VDC
Operating Temperature:
- SAM without monitor: 5 to 140°F (-15 to 60°C)
- SAM fitted with monitor (optional): 32 to 122°F (0 to 50°C)
Pressure rating: 290psig max
Flow rate: 2 to 10scfh (1 to 5Nl/min)
Process connections: I/O SST connections via 1/4in tube fittings
Ingress protections (with GRP enclosure options only): IP66, NEMA 4X
Baseplate material: 316 SST
Baseplate dimensions: 12in x 12in x 0.07in
Flexible filtration options
Fitted display option

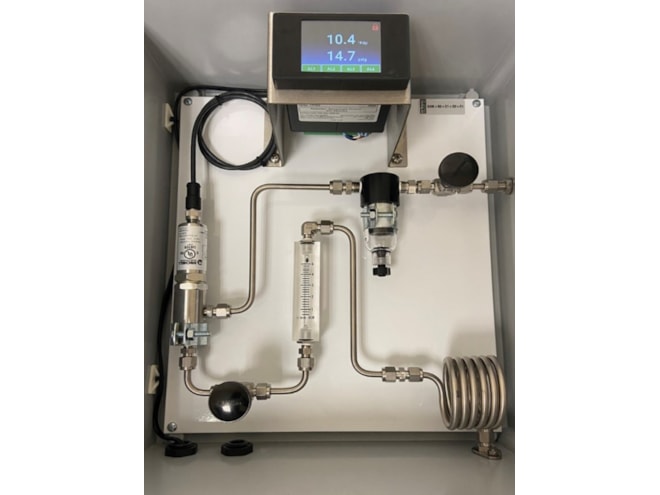

The SAM Compact Sampling System is designed to measure dew point or moisture content with consistent, accurate results in various industrial gas applications with a tested inlet operating pressure up to 290psig The SAM comes equipped with a flow meter and metering valves for easy maintenance of optimum flow for more accurate reads (2 to 10scfh). Constructed with gas-wetted parts such as 316 stainless steel and borosilicate glass, this allows the SAM to operate with minimal response times to moisture content changes. The SAM is a streamlined, cost-effective system built to revamp the compressed air, oil and gas process markets.

Built with application flexibility in mind, the SAM system components are fully interchangeable, and is compatible with various dew point transmitters and hygrometers via 5/8 and 3/4in UNF process connections. This customization is further exemplified in the design of the filtration system. In addition to the HDPE guard for the sensing element, the SAM comes outfitted with a filter housing that can take recyclable particulate filter, or coalescing filter cartridges.

Add additional protection and extend the operating life of the SAM system in harsher process environments with the optional GRP Enclosure, with IP66 and NEMA 4X ratings. Optional fitted display for easy-to-read data also available with enclosure configurations.
