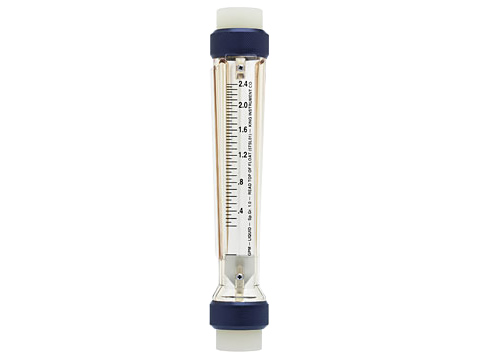

King Instrument 7330 Series Rotameter
Starting at $245.00

Not in stock. Usually ships in 2-3 weeks. Call for expedite options [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 1/2 to 100GPM (Teflon float)
    1-1/2 to 150GPM (Metal float)
  • 127mm (5in), direct reading, detachable scale
  • ±3% full scale accuracy
    ±5% full scale (120/150 GPM Metal floats)
    ±6% full scale (Teflon floats)
  • 10:1 to 12-1/2:1 turndown (unless otherwise indicated)
  • 1/2% Repeatability
    1% (120 & 150GPM Metal floats)
    1% (Teflon floats)
  • 130°F (54°C) max (PVC)
    200°F (93°C) max (PVDF)
  • 150 psig max (sizes 41-72W)
    125 psig max (size 90-103W)
  • 33 to 125°F (1 to 52°C) ambient temperature

The molded polysulfone King Instrument 7330 series rotameters are offered with direct reading scales for flow rates from 0.1-1.0GPM to 10-100GPM (water). The King Instrument 7330 series rotameters' connections are vertical (in-line type) with PVC or PVDF union ends which greatly simplify installation and maintenance. With the Teflon float option, the King Instrument 7330 series rotameter is excellent for applications where no metal is preferred.

PVC fittings are standard to the King Instrument 7330 series rotameter. These fittings are rated for a maximum temperature of 130°F (54°C) and maximum pressure of 150 psig for sizes 41-72W and 125 psig for sizes 90-103W. PVDF fittings are available as an option to the King Instrument 7330 series rotameter. PVDF fittings are rated for a maximum temperature of 200°F (93°C) and a maximum pressure of 150 psig for 41-72W and 125 psig for sizes 90-103W.

Alarm Option – Latching Reed Switch

A latching reed switch is available for all King Instrument rotameters in the 7300, 7600, and 7900 Series. The switch is reed type and uses a biasing magnet to create a latching feature. The switch is classified as a simple apparatus by UL, FM, etc. and may be suitable for hazardous use when connected to an intrinsic safety barrier. Check your local electrical code for wiring specifications.

  • Switch type: SPDT
  • Max contact voltage: 100VDC
  • Max contact current: 0.2A
  • Max contact power: 4W
  • Breakdown voltage: 200VDC
