Carlo Gavazzi Type PA2 Contact Block

Switching element equipped with two independent elements and double pole single throw (DPST) configurations.

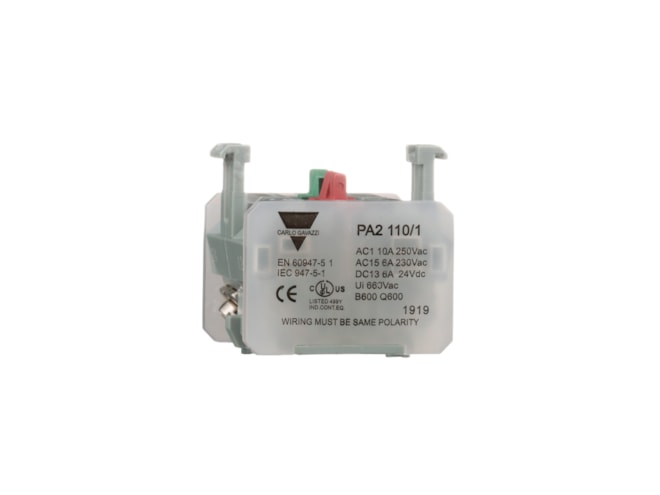

Carlo Gavazzi Type PA2 Contact Block side view
Carlo Gavazzi Type PA2 Contact Block front view

Retired products cannot be ordered

Please contact Instrumart for a recommended replacement.

View Company Reviews

Manufactured

By Carlo Gavazzi

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Specs

Features

-13°F to 158°F (-25°C to 70°C) operating temperature
-22°F to 176°F (-30°C to 80°C) storage temperature
Double switch
10A switching capacity
Up to 500VAC
Modular mounting of up to 3 elements
Screw terminals
Industrial applications

The Carlo Gavazzi Type PA2 Contact Block supports double pole single throw (DPST) configurations available with 2 NO contacts, 2 NC contacts, or 1NC + 1NO contacts. Hard silver is the standard contact material, copper is used for contact parts, and the switch housing is polycarbonate. The contact block functions on a minimum switching power of 100mA (current) and 24V (voltage).
