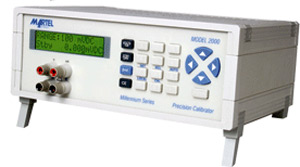

Martel Millennium M2000A Calibrator

Multifunction bench calibrators.

Features

  • Superior calibration accuracy
  • Direct keyboard entry or cursor entry with decade control
  • Automatic standby function protects device under test
  • Nine (9) Manual/Automatic setpoints per output range
  • Tellurium-Copper binding posts reduce thermal EMFs to <1uV
  • Local or RS232 remote control
  • Standard IEEE-488 interface
  • Compatible with Fluke Met/Cal software
  • Optional Rack/Panel mount kit available
  • Source Current and Voltage

The multifunction Martel M2000A calibrator sets a new standard in lab calibrator value - the Martel M2000A calibrator features the accuracy and stability of calibration sources costing twice as much while providing useful features no other multifunction calibrator offers in its class.

The Martel M2000A calibrator provides simple, front-panel entry of output voltage or current using either direct keyboard entry or cursor entry.

The bench-top, multifunction Martel M2000A calibrator has an automatic OPERATE/STANDBY function, which not only protects the device under test and the M2000A from overload conditions but also provides UL/CSA-certified safe operation when ranging to output voltages over 30V. The Martel M2000A calibrator features a second function key which provides easy access for up to nine setpoints for each output range that can be recalled individually at the touch of a button or can be stepped through automatically with control of the setpoint dwell time. The Martel M2000A calibrator has five way copper alloy binding posts which provide a wide range of connection options.

All of the Martel M2000 calibrator's operating functions can be accessed via RS232, using a standard PC running Fluke Met/Cal® software, HyperTerminal under Windows, Visual Basic, or any other software using an ASCII interface. An IEEE-488 bus interface is standard.

The accuracy of the Martel M2000A calibrator is specified for both 90-day and one year intervals. A self-calibration may be performed at any time via the front panel or the remote interface.
