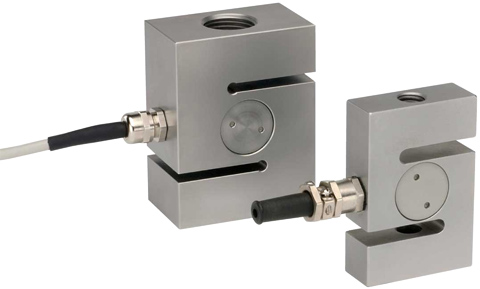

NOSHOK 2351 Series Force Transducers

Conventional design features internal threads which allow force to be easily introduced via suitable swivel heads.

Features

  • (0 to 20N) up to (0 to 50kN) measuring ranges
  • Thin film sensors and an integrated amplifier
  • High shock and vibration resistance
  • Minimal temperature drift
  • Dynamic or static requirements
  • Overload protection rated for 150% of the max load
  • Protection class IP 65 or IP 67
  • 0.2% of full scale accuracy
    • Call us if you'd like 0.1% accuracy

The NOSHOK 2351 Series Force Transducers features internal threads which allow force to be easily introduced via suitable swivel heads. Calibrations in the tension or compression direction only are available at no extra charge. The overload protection is rated for 150% of the maximum nominal load.

Applications for the 2351 include:

  • Plant engineering
  • Production lines
  • Measurement and monitoring facilities
  • Special equipment and machinery construction
  • Test benches and production lines
