Megger PVK320 Solar Test Kit

1002-550

Megger

Usually ships in 2-3 weeks [?]

instrumart-trustpilot-badge

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Irradiance meter for positioning solar panels
    • Maximum range of 1999W/m²
  • CATIV 600V safety rated multimeter
    • 1000VDC, 750VAC & 10A AC/DC ranges
    • True RMS readings are possible on AC ranges
    • Measures resistance, frequency & capacitance
    • Data hold

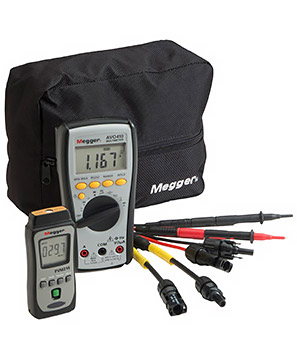

What's in the Box

  • AVO410 CATIV TRMS multimeter with rubber holster
  • PVM210 irradiance meter with cal cert and pouch
  • MC4 solar connectors to 4mm standard plug test leads
  • MC3 to MC4 adapter test leads
  • PV kit storage pouch
  • Batteries

The Megger PVK320 solar test kit offers a complete package of instrumentation to meet the varied requirements of photovoltaic installation. The PVM210 irradiance meter is a pocket sized solar detector that provides fast, accurate readings of solar power. It is ideal for choosing the optimum position for solar panel installation. It's compact design is easy to handle on a sloping roof or at the top of a ladder. You can also use the PVM210 measurements to calculate short circuit current when used with an ammeter to verify the stated short circuit current provided by the manufacturer of the solar panel.

The included AVO410 multimeter has a rubberized compact case for protection in extreme weather conditions. The style of the case and positioning of the function switch and buttons allows for easy single-handed use.

Megger 1002-549 PV Test Lead Kit
Set of MC3 and MC4 solar test leads for PVM210 irradiance meter
$62.00

Applications

This product can be used in the following applications:
