Brooks Sho-Rate Model 1358 Variable Area Flow Meters
Call for pricing

Model 1358

Brooks Instrument

Not in stock. Usually ships in 3-4 weeks [?]

Need Help? Call a Flow Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

An engineer will contact you regarding your application data prior to final processing of any Brooks Instrument order.


  • 10:1 rangeability
  • Precision bore borosilicate glass metering tube
  • Flow ranges up to 5 gpm and 15 scfm
  • ±10% FS accuracy from 100% to 10% of scale reading
  • 316 stainless steel float
  • Interchangeable tubes and floats
  • Piping connections rotate through 360° at 90° intervals
  • Single tube or multi-tube configurations available

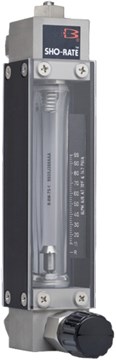

The Brooks Sho-Rate Model 1358 variable area flow meters are built with a precision bore borosilicate glass metering tube. The 1358 features 10:1 rangeability and a 316 stainless steel float. The tube is removable without having to disconnect the instrument. The 1358 is easily panel mounted and features interchangeable tubes and floats. The tubes are removable without having to disconnect the instrument. The piping connections rotatable through 360° at 90° intervals. Single tube or multi-tube configurations are available.

Applications for the 1358 include:

  • Pharmaceutical production
  • Research
  • Chemical manufacturing
  • Analytical instrumentation
  • Water treatment and distribution systems
