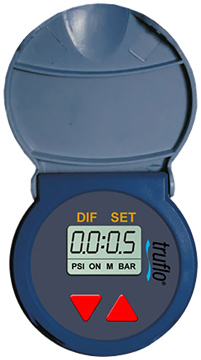

ICON TruFlo Delta-P Series Differential Pressure Gauge

All plastic design, corrosion resistant, ±0.5% accuracy, NEMA 4X rugged enclosure, LCD digital display.

Features

  • All plastic design
  • Glass filled ryton
  • Corrosion resistant
  • Dry relay contact: 0.5AMP at 24VDC (N/O) output
  • ±0.5% accuracy
  • NEMA 4X rugged enclosure
  • Liquid crystal display
  • Max pressure 225 psi (15 bar)
  • Operating temp: 4 to 140°F (-20 to 60°C)
  • SST mounting kit included

The ICON TruFlo Delta-P series differential pressure gauge is an all-plastic corrosion-resistant differential pressure gauge and relay switch. The LCD digital display is selectable between psi and bar. The Delta-P pressure gauge comes with an SST mounting kit. The rugged design has a NEMA 4X enclosure.

The Delta-P measures the differential pressure between the upstream port or (high) and downstream port (low) to provide indication and notification of a filter/strainer element (change, clean, or replace), pump,(choked flow), valve (cavitation) or tank (level). The pressure difference in turn acts on a piston/magnet assembly within the Truflo device activating the programmable latching relay switch which can be used for alarm notification, pump or valve shut-off.
