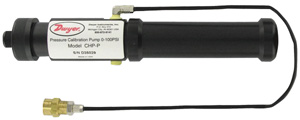

Dwyer CHP Hand Pump
Starting at $549.00

Not in stock. Usually ships in 4-6 business days [?]

Need Help? Call a Temperature Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET


  • Range:
    • CHP-P: 0 to 100 psi
    • CHP-V: -28.8 to 0 inHg
  • Process Connection: Two 1/8" female NPT ports, one with a removable plug
  • Pressure Limit: 150 psig (10.34 bar)
  • Temperature Limit: Not to exceed 150°F (65.6°C)
  • Displaced Volume: Approximately 4 in³

The Dwyer CHP Pneumatic Hand Pump is the most dependable and rugged pump for applications up to 100 psi or 28.8" Hg Vacuum. The durable Acetal plastic and anodized aluminum construction prevents body heat transfer, resulting in drift-free, accurate readings. The Series CHP is equipped with oversized check valves in order to provide smooth and controlled operation. Dual O-Rings on all pistons ensure the pump to be leak-free. The unit includes a 2 foot long hose, 1/8" female NPT gauge fitting, and 1/8" NPT pipe plug. An optional hose kit is available so that a tee is not required when connecting a sensor and a calibrator. The Series CHP is ideal for checking calibration of pressure or vacuum gauges, switches, or transmitters.

Dwyer CHP-KIT Hose Kit
Hose and fitting kit for Dwyer CHP hand pump


This product can be used in the following applications:
