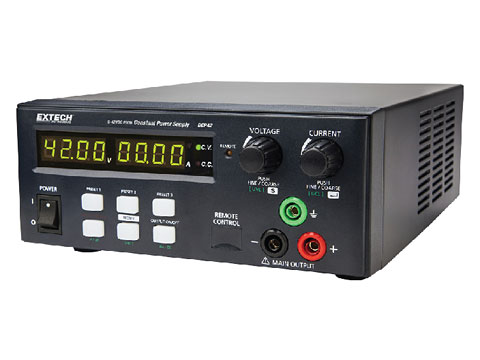

Extech DCP42 Switching Power Supply

Constantly calculates and adjusts the Voltage and Current limit points according to available maximum power (160W).

Features

  • Constantly calculates and adjusts Voltage/Current limit points
  • Output voltage 0 to 42V
  • Output current 0 to 10A
  • Accuracy ±(0.2%+5 counts)
  • Dual action rotary encoder control
  • Three on-board user-defined Voltage/Current presets
  • Store 20 presets with up to 999 cycles each

What's in the Box

  • Power cord
  • Software
  • USB cable

The Extech DCP42 Switching Power Supply is a 160W single continuous Switching Power Supply that offers high efficiency electrical power conversion for greater energy conservation and lighter weight. At maximum current (10A), voltage is limited to 16V and at maximum voltage (42V), current is limited to 3.8A. The DCP42 features dual action rotary encoder control with push knob for fine and coarse tuning.

Applications for the DCP42 include:

  • Laboratory use
  • Bench Testing, Service, and Repair
  • Research and Development facilities
  • Educational and Institutional Training
