  • Built-in non-contact Voltage detector with LED alert
  • True RMS
  • Backlit LCD display
  • 1.2 inch (30mm) jaw size for conductors up to 350MCM
  • CAT III 600V rating
  • Data hold
  • Low battery indication and auto power off
  • AC Current (max resolution) 400A (0.01A)
  • DC Current (max resolution) 400A (0.01A)
  • AC Voltage (max resolution) 600V (0.1mV)
  • DC Voltage (max resolution) 600V (0.1mV)
  • Resistance (max resolution) 40MΩ (0.1Ω)
  • Frequency (max resolution) 10Hz to 10kHz
  • Capacitance (max resolution) 100µF (0.01nF)
  • Temperature (max resolution) 4 to 1400°F (-20 to 760°C) (0.1°)
  • Diode / continuity

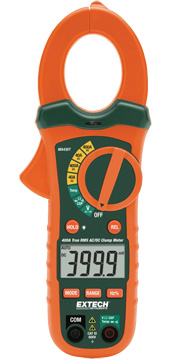

The Extech MA435T AC/DC Clamp Meter compact size allows measurements in tight locations and built-in non-contact voltage detector with LED alert. The MA435T measures true RMS and has all multimeter functions. It measures AC current, DC current, AC voltage, DC voltage, resistance, frequency, capacitance and temperature. The 1.2 inch (30mm) jaw can handle conductors up to 350MCM. The MA435T is provided with a low battery indication and an auto power off feature. This unit features a 4000 count display.

The Extech MA430T AC Clamp Meter ships complete with:

  • Test leads
  • General purpose Type K bead wire temperature probe
  • 9V battery
  • Soft case
