Vaisala HMK15 Humidity Calibrator
Starting at $623.00

Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Measurement range
    • LiCl salt: 11% RH
    • MgCl2 salt: 33% RH
    • NaCl salt: 75% RH
    • K2SO4 salt: 97% RH
  • Accuracy (at 20 °C)
    • LiCl salt: ± 1.3% RH
    • MgCl2 salt: ± 1.2% RH
    • NaCl salt: ± 1.5% RH
    • K2SO4 salt: ± 2.0% RH
  • Easy and reliable calibration of humidity probes and transmitters
  • Based on saturated salt solutions
  • Suitable for laboratory use and on-site checks
  • Fast temperature equilibration
  • No external power required
  • Easy to transport

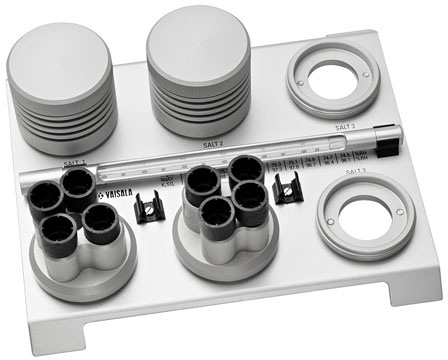

What's in the Box

  • 2 salt chambers
  • Chamber covers
  • Transportation covers
  • Base plate
  • Thermometer
  • Measurement cup
  • Mixing spoon

The Vaisala HMK15 humidity calibrator makes the calibration and spot checking of humidity probes and transmitters easy and reliable. The HMK15 operates on the principle that a saturated salt solution generates a certain relative humidity in the air above it-- the reading of the humidity probe or transmitter can then be adjusted accordingly.

To calibrate, a sensor head is inserted into a salt chamber containing a saturated salt solution. The probe/transmitter reading is then adjusted to the humidity that the specific salt solution generates at that particular temperature. Calibrations are usually performed at least at two different humiditys to ensure accuracy over the entire humidity range. There are four holes in the chamber cover designed for probes and transmitters with 12 mm, 13.5 mm (2 each) and 18.5 mm diameters.

The Vaisala HMK15 humidity calibrator is suitable for both laboratory and filed usage. During transportation, the chambers can be tightly closed with specially designed transit covers.

Vaisala Lithium Chloride Calibration Salt
One dose of LiCL salt for generating 11% RH humidity in HMK15 calibrators
$70.00
Vaisala Magnesium Chloride Calibration Salt
One dose of MgCl2 salt for generating 33% RH humidity in HMK15 calibrators
$70.00
Vaisala Sodium Chloride Calibration Salt
Sodium chloride salt for generating 75% RH humidity
$70.00
Vaisala Potassium Sulfate Calibration Salt
One dose of K2SO4 salt for generating 97% RH humidity in HMK15 calibrators
$70.00
Vaisala Ion Exchanged Water
60ml bottle (sufficient for 4 chambers), for preparation of saturated salt solutions
$16.00
Vaisala Salt Chamber
Includes calibration cover with 4 probe holes (12mm, 18.5mm, & two 13.5mm), 4 protective rubber plugs, transportation cover, & o-rings
$184.00
Vaisala Potassium Chloride Calibration Salt
One dose of KCl salt for generating 85% RH humidity in HMK15 calibrators
$70.00
Vaisala HMK15 Transit Bag
Transport the calibrator in the vertical position using this soft case with cutout foam insert
$179.00
Vaisala HMK15 Red Capillary Liquid Thermometer
+/- 1.8°F (1°C) accuracy, factory calibration certificate, & protective sleeve that reverses into an adapter to insert into 13.5mm salt chamber
$243.00
