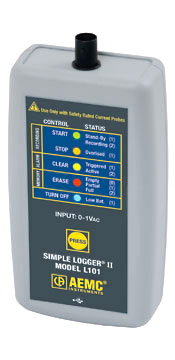

AEMC L101 Simple Logger II

One channel loggers with the ability to perform a variety of recording tasks.

Features

  • Compatible standard current probes with voltage output and BNC connection
  • 64 samples per cycle
  • Programmable storage rates from 8 every second to 1 every day
  • 4 user selectable storage modes
  • Stores up to 240,000 measurements in non-volatile memory
  • Powered by standard Alkaline batteries
  • Lightweight, compact, fits anywhere
  • 5 LED indicators quickly and clearly display logger status

The AEMC L101 Simple Logger® II is a one channel recording device powered by an alkaline battery pack. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency (50 or 60Hz). Harmonic measurements are calculated from these 64 samples (Harmonics are only available from the Simple Logger® II Control Panel within the DataView® software).

The Simple Logger® II records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the input(s) are ignored between measurement intervals. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.

Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information. An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instrument's internal memory to the computer for analysis.

Applications include:

  • Load profiling
  • Fault current detection
  • Intermittent problem detection
  • Demand recording
  • Neutral current monitoring
  • Harmonic current recording using DataView® software
  • Metering CT resizing
  • Start-Stop time stamping
