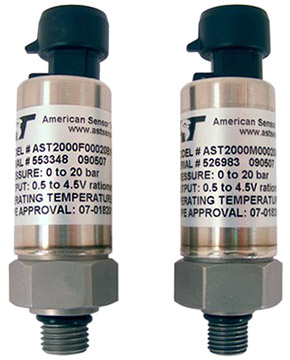

AST2000H2 Hydrogen ASIC Pressure Sensor
Starting at $215.83
Minimum Order: 25 item minimum.

Not in stock. Usually ships in 8-14 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

NOTE: minimum order quantity call for availability

Features

  • One piece design
  • Accuracy < ±0.5% BFSL (includes non-linearity, hysteresis & non-repeatability)
  • Pressure cycles > 100 Million
  • Over range protection 2X rated pressure
  • All 316L wetted material for optimal compatibility
  • No oil-filled cavities leave no chance of containment
  • Non-welded diaphragm eliminates leak paths and weak points
  • Digitally compensated
  • Krystal Bond™ technology
  • Approvals:
    • EC79
    • CE EN61326
  • NOTE: minimum order quantity call for availability

The AST AST2000H2 Hydrogen ASIC Pressure Sensor is now available for hydrogen pressure sensing applications. Tested to a variety of hydrogen and automotive standards, the AST2000H2 series combines the best mechanical design for hydrogen measurement with high performance digital compensation.

Application include:

  • PEM fuel cells
  • Hydrogen filling stations
  • Back up power
  • Hydrogen storeage
  • Test stands
AST A08670 Cooling Adapter
1/4in NPT female to 1/4in NPT male 316L SS cooling adapter for pressure sensors, reduces the temp by 100°F at ambient temp of 70°F
$208.33
