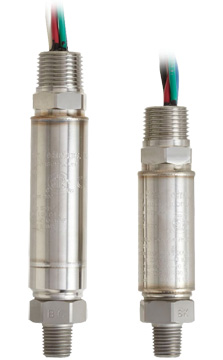

AST46PT Pressure & Temperature Transmitter
Measure pressure and temperature in explosion-proof rated areas from a single device with pressures up to 20,000 psi
Need Help? Call a Calibration Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
John A.
Applications Engineer
13 years at Instrumart
Mark D.
Applications Engineer
8 years at Instrumart
Mike K.
Manager of Outside Sales
8 years at Instrumart
Angelo S.
Applications Engineer
Shawn S.
Senior Applications Engineer
24 years at Instrumart
Features
- <±0.1% accuracy
- Burst pressure of 5X or 50,000 psi, whichever is less
- Temperature ranges:
- Operating ambient of -40 to 185°F (-40 to 85°C)
- Operating media of -65 to 250°F (-55 to 125°C)
- Storage of -58 to 221°F (-50 to 105°C)
- ANSI/ISA-12.27.01.2003 certified “single seal”
- No secondary seal required
- Vented versions rated IP-65
- Class I Zone 1 Group IIC
- Class I Div 1 Groups A, B, C, D Explosionproof
- Sealed gauge versions rated IP-66
- UL1203/FM3615 Class I Zone 1 Group IIC
- Class I Div 1 Groups A, B, C, D Explosionproof
- Class II Div 1 Groups E, F, G Dust Ignition-proof
The AST46PT pressure and temperature transmitter is explosion proof and CSA approved for use in hazardous areas.
Applying digital compensation, this product offers top performance over a wide temperature range. Utilizing Krystal Bond Technology, the sensing element will measure pressure in the most extreme temperature conditions. Where other sensor technologies will freeze or boil, the AST46PT uses a one piece stainless steel sensor to offer continuous operation.
Applications include:
- Well optimization
- Oil and gas pipelines
- Drilling platforms
- Marine & offshore
- CNG / hydrogen fill station
- Paint booths
- Remote telemetry unit
- Cold climate drilling & mining
1/4in NPT female to 1/4in NPT male 316L SS cooling adapter for pressure sensors, reduces the temp by 100°F at ambient temp of 70°F
$208.33
In Stock
